Mindman MCCG series

Mindman MCCG-11-63 Round Cylinder, ø63 mm Bore, Double Acting, Male Rod Thread

SKU MCCG-11-63-(1-25)-NPT
by Mindman
$114.76 - $298.32
$114.76
$114.76 - $298.32
$114.76
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

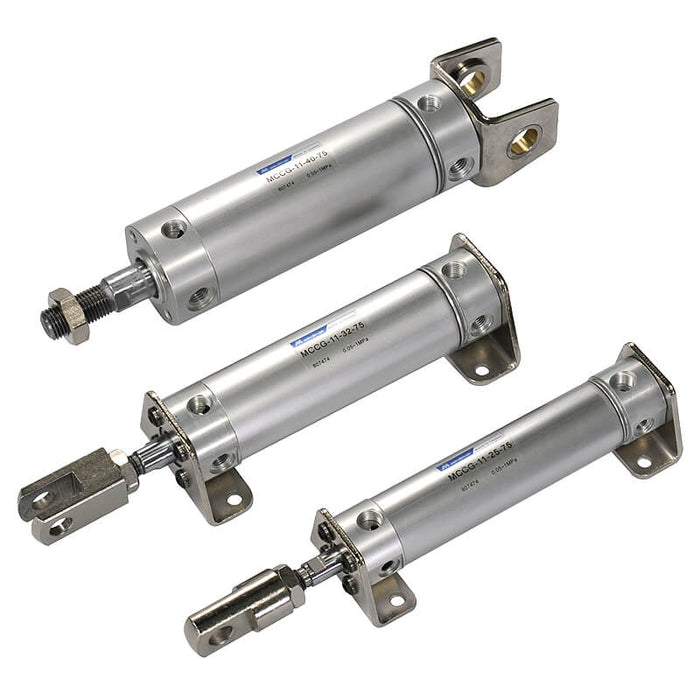

Mindman MCCG series round cylinder, ø63 mm bore, double acting, male rod thread.

Stroke: available from 1 to 500 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCCG-11-63-[stroke][M][-A]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 20, 25, 32, 40, 50, 63, 80, 100
Port size Rc1/8, Rc1/4, Rc3/8, Rc1/2
Medium Air
Max operating pressure 1 MPa
Min operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Available speed range 50~500 mm/sec
Max. allowable kinetic energy Cushion pad 0.07~2.48 J; Cushion air 0.09~4.18 J
Sensor switch RDC, RQC, RCM
Sensor switch holder R*C: BKC-1 (Not for R*CV angle cable); RCM: BMG20~BMG100
Series Mindman MCCG
