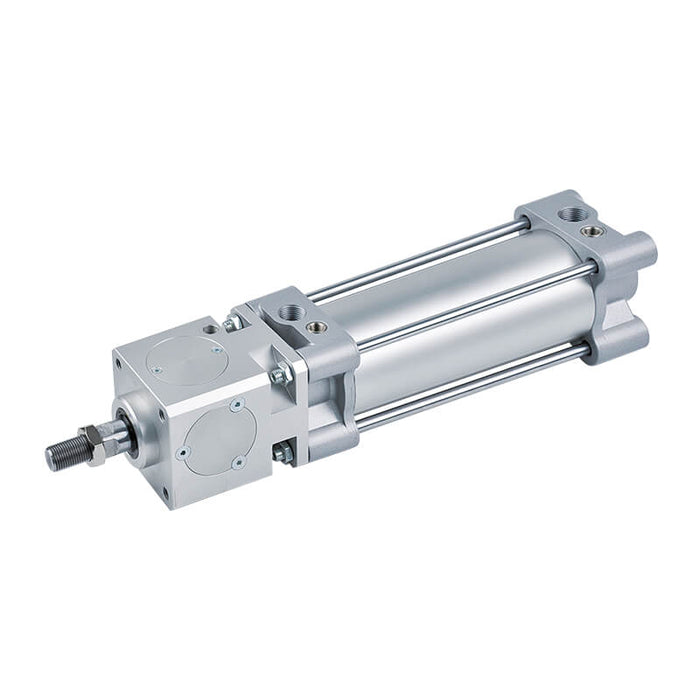

Mindman MCBQV3 series

Mindman MCBQV3-11-50 ISO 15552 Rod-Locking Cylinder, ø50 mm Bore, Double Acting, Male Rod Thread

SKU MCBQV3-11-50-(1-100)
by Mindman
$944.99 - $1,049.26
$944.99
$944.99 - $1,049.26
$944.99
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCBQV3 series iso 15552 rod-locking cylinder, ø50 mm bore, double acting, male rod thread.

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCBQV3-11-50-[stroke][M][-S]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard ports are G (BSPP) thread; Rc or NPT ports are available on request – contact us.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 32, 40, 50, 63, 80, 100
Medium Air
Operating pressure range 0.3~0.6 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (no freezing)
Min. working pressure 0.3 MPa
Available speed range 50~500 mm/sec
Locking mode Secure locking of piston rod in any position
Lock retention forces; (Max. static loading─Horizontal mounting) 790~7700 N
Sensor switch RDC(V), RQC(V), RDT, RQT, RCA
Sensor switch holder R*C(V): DT7-1, DT7-2; R*T: DT-1, DT-2; RCA: HV1, HV2, HV3
Series Mindman MCBQV3
