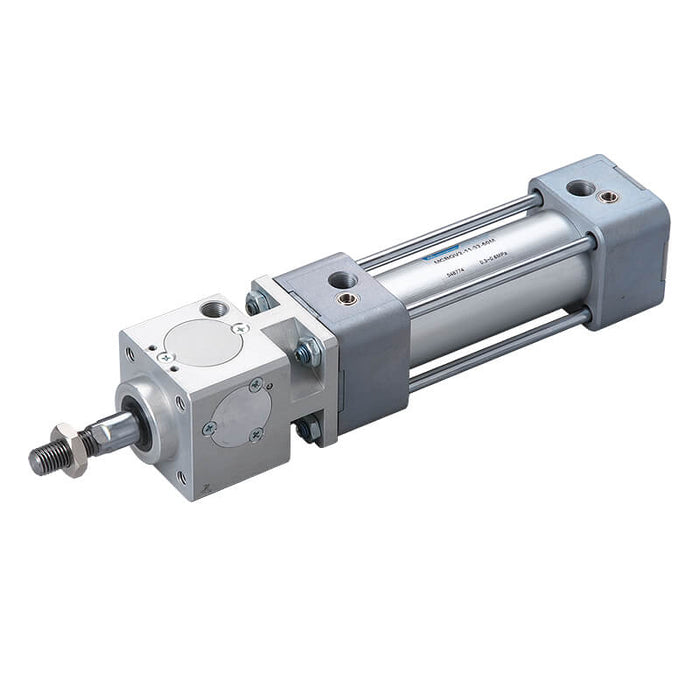

Mindman MCBQV series

Mindman MCBQV-11-125 ISO Rod-Locking Cylinder, ø125 mm Bore, Double Acting, Male Rod Thread

SKU MCBQV-11-125-(1-100)
by Mindman
$2,464.35 - $3,041.93
$2,464.35
$2,464.35 - $3,041.93
$2,464.35
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCBQV series iso rod-locking cylinder, ø125 mm bore, double acting, male rod thread.

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCBQV-11-125-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard ports are G (BSPP) thread; Rc or NPT ports are available on request – contact us.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 125
Medium Air
Operating pressure range 0.3~0.6 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Min. working pressure 0.3 MPa
Locking mode Secure locking of piston rod in any position
Lock retention forces 12040 N
Available speed range 50~500 mm/sec
Sensor switch RDC(V), RQC(V), RDT, RQT, RCA
Sensor switch holder R*C(V): DT7-3; R*T: DT-3; RCA: HV4
Series Mindman MCBQV
