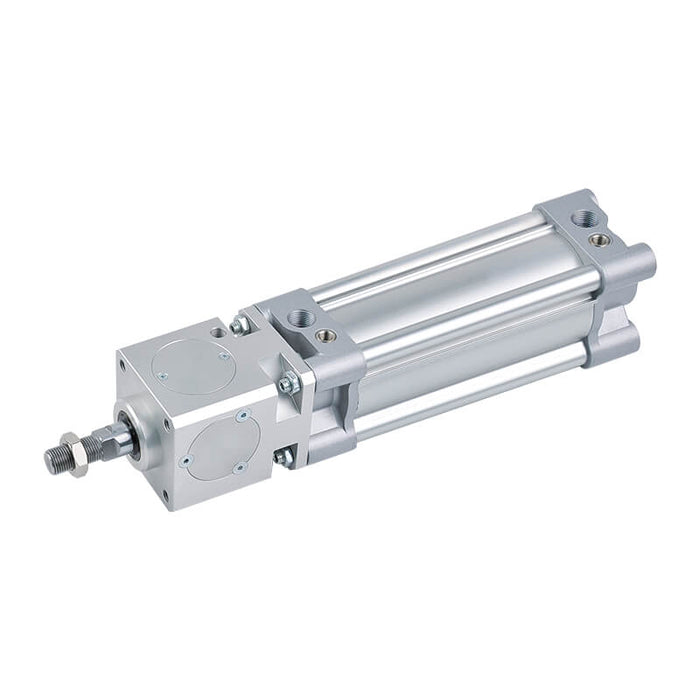

Mindman MCBQI3 series

Mindman MCBQI3-11-80 ISO 15552 Rod-Locking Profile Cylinder, ø80 mm Bore, Double Acting, Male Rod Thread

SKU MCBQI3-11-80-(1-100)
by Mindman
$1,332.82 - $1,572.98
$1,332.82
$1,332.82 - $1,572.98
$1,332.82
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCBQI3 series iso 15552 rod-locking profile cylinder, ø80 mm bore, double acting, male rod thread.

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCBQI3-11-80-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard ports are G (BSPP) thread; Rc or NPT ports are available on request – contact us.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 32, 40, 50, 63, 80, 100
Medium Air
Operating pressure range 0.3~0.6 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Min. working pressure 0.3 MPa
Available speed range 50~500 mm/sec
Locking mode Secure locking of piston rod in any position
Lock retention forces 790~7700 N
Sensor switch RDT, RQT, RCI
Series Mindman MCBQI3
