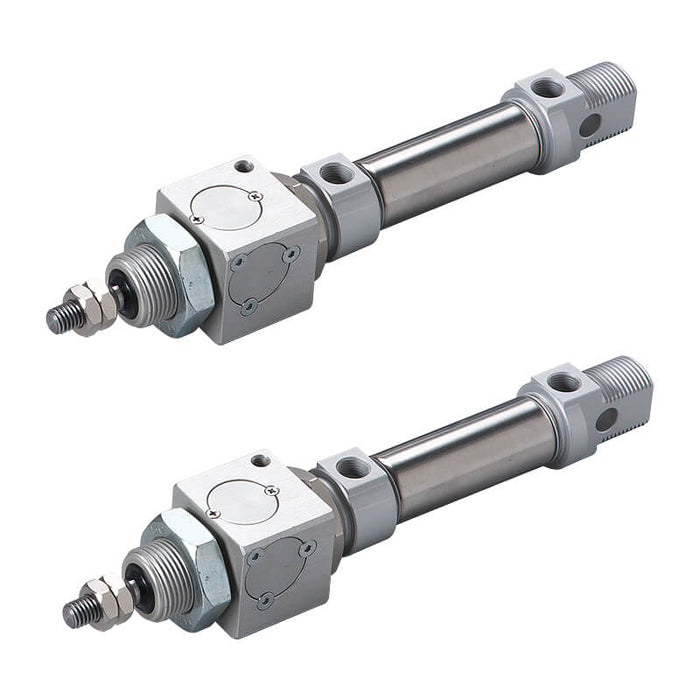

Mindman MCBMI series

Mindman MCBMI-11-20 ISO 6432 Rod-Locking Mini Cylinder (Magnet Standard), ø20 mm Bore, Double Acting, Male Rod Thread

SKU MCBMI-11-20-(1-25)
by Mindman
$469.20 - $513.85
$469.20
$469.20 - $513.85
$469.20
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCBMI series iso 6432 rod-locking mini cylinder (magnet standard), ø20 mm bore, double acting, male rod thread.

Stroke: available from 1 to 500 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCBMI-11-20-[stroke]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 20, 25
Medium Air
Operating pressure 0.3~0.6 MPa
Min. operating pressure 0.3 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~750 mm/sec
Locking mode Secure locking of piston rod in any position
Lock retention forces 490 N
Sensor switch (Band) RDC, RQC (BKC-1); RDT, RQT (BKT-1); RCM (BM20, BM25)
Series Mindman MCBMI
