Mindman MAVS series

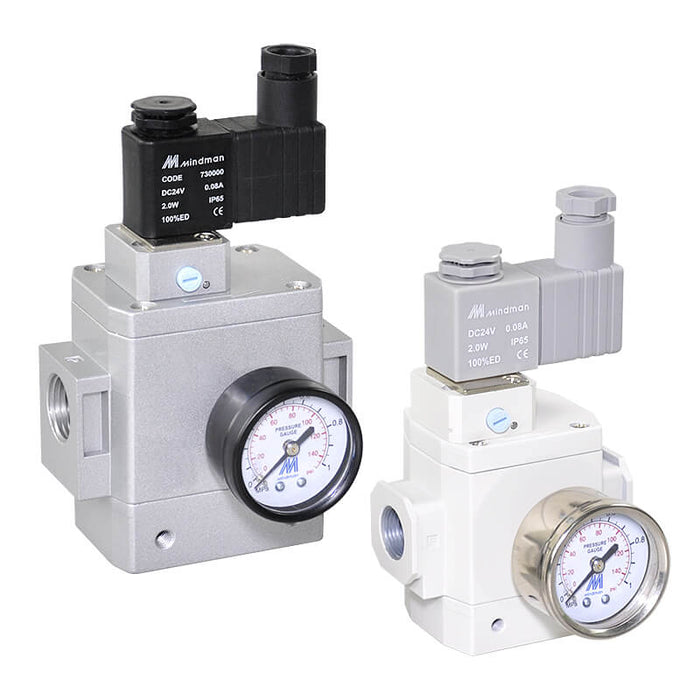

Mindman MAVS400-15A-3 Soft Start-Up Valve, Cool Gray

SKU MAVS400-15A-3-AC110-NPT
by Mindman
$127.55 - $131.00
$127.55
$127.55 - $131.00
$127.55
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MAVS soft start-up valve. Select coil voltage, electrical connection and port thread; the full Mindman ordering code is shown as the SKU.

Specifications

Port size MAVS200: 1/4 (8A), MAVS300: 3/8 (10A), MAVS400: 1/2 (15A)
Medium Air
Operating pressure range 0.25~1 MPa
Effective orifice 8A:1(P)→2(A): 20mm2,2(A)→3(R): 24mm2; 10A:1(P)→2(A): 37mm²,2(A)→3(R): 49mm²; 15A:1(P)→2(A): 61mm²,2(A)→3(R): 76mm²
Ambient temperature 0~＋60℃
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption-Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power consumption-Power saving DC=Start: 2W(*) Power saving: 0.5WA
Available voltage range ±10%
Insulation class F class
Option Pressure gauge (PG-40), L type bracket
Weight 450 g, 520 g, 800 g
Remark * Power saving covert time 100ms.
Series Mindman MAVS
