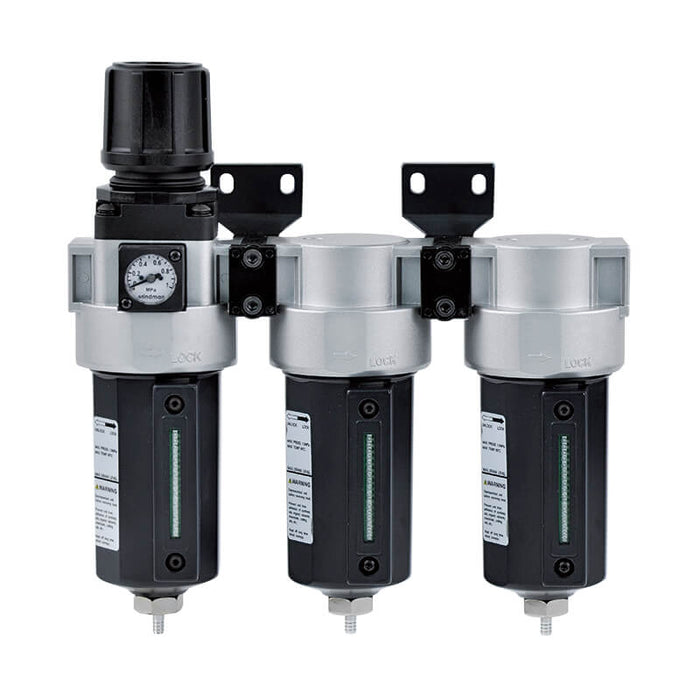

Mindman MATFR401 series

Mindman MATFR401-15A Filter Regulator

SKU MATFR401-15A-NPT
by Mindman
$503.65 - $503.65
$503.65
$503.65 - $503.65
$503.65
Availability:
In stock
Availability:
In stock
Availability:
In stock

MATFR401 series (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1.5 MPa
Proof pressure 2 MPa
Regulated pressure range Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element 5μm+0.3μm+0.01μm
Standard attachment Pressure gauge (PG-20), L type bracket
Optional attachment C type bracket
Weight 2106 g
Remark ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MATFR401
