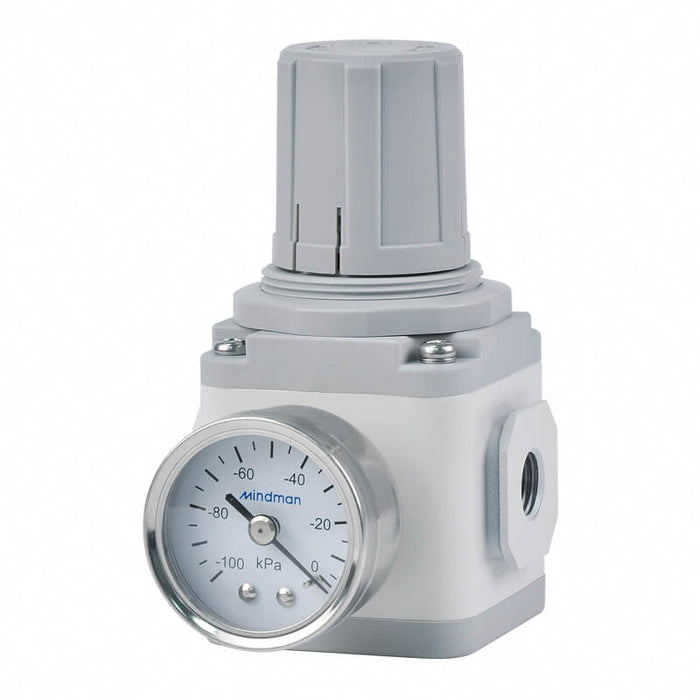

Mindman MARV302 series

Mindman MARV302-8A-C Regulator

SKU MARV302-8A-C-NPT
by Mindman
$68.98 - $68.98
$68.98
$68.98 - $68.98
$68.98
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAR (Pressure Reducing Valves).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Proof pressure ※1 100 kPa
Setting pressure range ※2 -100 ~ -1.3 kPa
Atmospheric intake consumption ※3 0.6 l/min(ANR) or less
Knob resolution 0.13 kPa以下
Ambient temperature –5~+60°C (No freezing)
Max. flow rate ※4 275 l/min(ANR), 310 l/min(ANR)
Option Pressure gauge (PGV-40S), L type bracket
Weight 470 g
Remark ※1. For vacuum regulator with pressure gauge, the gauge will be damaged if positive pressure is supplied.; ※2. Use caution it varies depending on the pressure in vacuum pump side.; ※3. Take air from atmosphere all the time.; ※4. It is the flow rate when the secondary side is completely close and primary pressure is at 101kPa, and then adjusting secondary pressure at -80kPa, the secondary side is fully opened.
Series Mindman MARV302
