Mindman MAR900 series

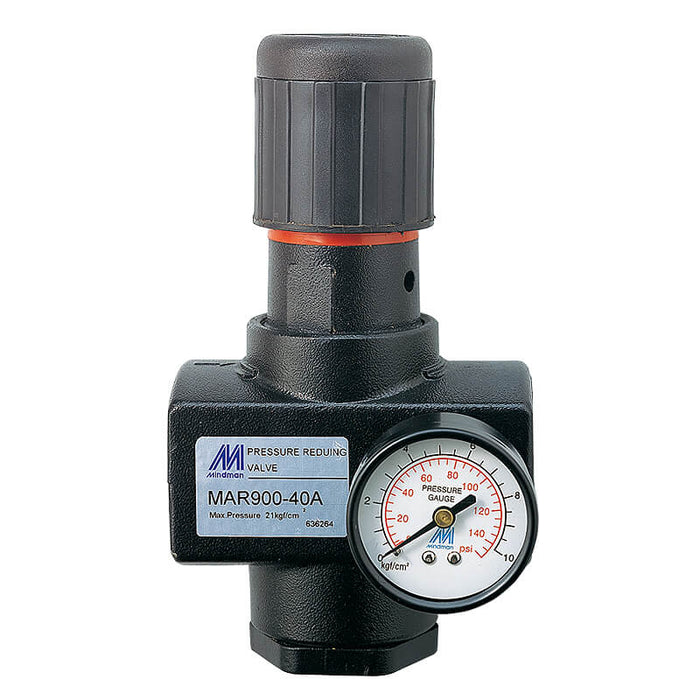

Mindman MAR900-40A Regulator

SKU MAR900-40A-NPT
by Mindman
$210.59 - $210.59
$210.59
$210.59 - $210.59
$210.59
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAR (Pressure Reducing Valves).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 40A
Port size 1 1/2
Medium Air
Max. operating pressure 2.1 MPa
Regulated pressure range 0.09~0.86 MPa
Ambient temperature 0~＋80℃(No freezing)
Attachment Pressure gauge (PG-50)
Standard nominal flow rate(※) 11000 l/min
Weight 1208g
Remark ※Flow is at 1 MPa supply pressure and 0.1 MPa purssure drop of 0.6 MPa of secondary pressure.
Series Mindman MAR900

No additional information at this time.
