Mindman MAR401 series

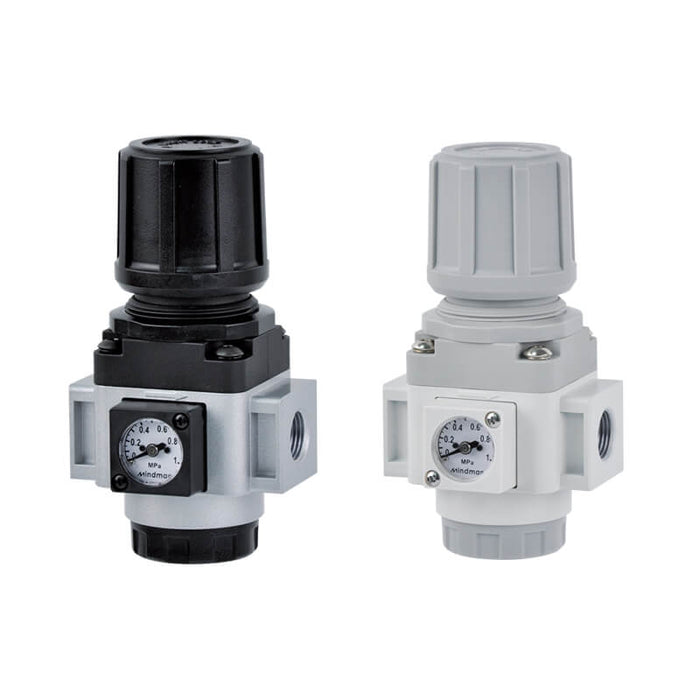

Mindman MAR401-10A-B2 Regulator

SKU MAR401-10A-B2-NPT
by Mindman
$55.54 - $55.54
$55.54
$55.54 - $55.54
$55.54
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAR (Pressure Reducing Valves).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Max. operating pressure 1.5 MPa
Proof pressure 2 MPa
Regulated pressure range Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Standard attachment Pressure gauge (PG-20)
Optional attachment Screw fixed bracket
Weight 450 g
Series Mindman MAR401
