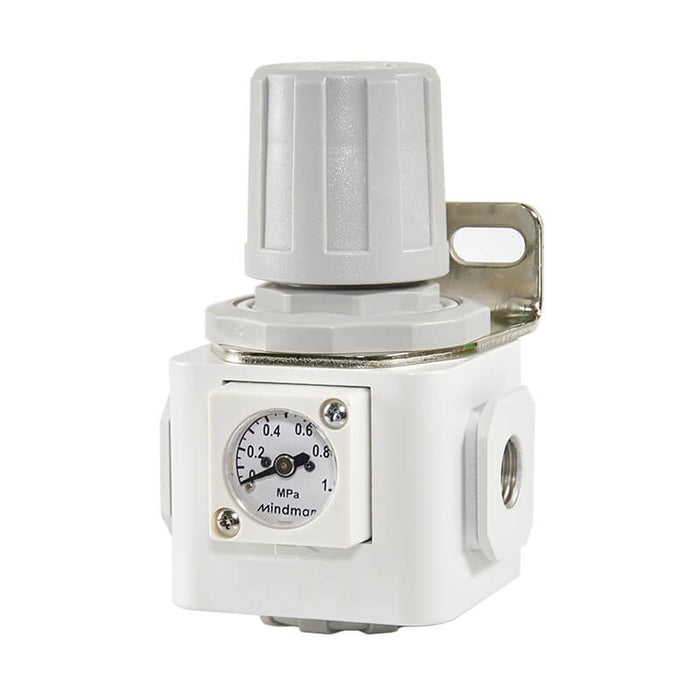

Mindman MAR302 series

Mindman MAR302K-8A-C Regulator

SKU MAR302K-8A-C-NPT
by Mindman
$46.53 - $46.53
$46.53
$46.53 - $46.53
$46.53
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAR (Pressure Reducing Valves).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Max. operating pressure 1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (no freezing)
Standard attachment Pressure gauge (PG-20), L type bracket
Optional attachment Z type bracket
Weight 400 g
Series Mindman MAR302
