Mindman MAR100 series

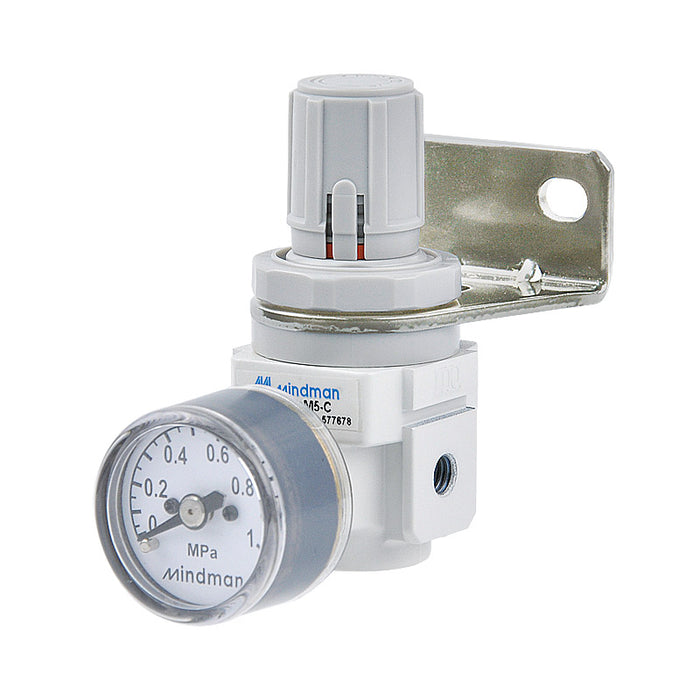

Mindman MAR100-M5-B-C Regulator

SKU MAR100-M5-B-C-NPT
by Mindman
$26.99 - $26.99
$26.99
$26.99 - $26.99
$26.99
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAR (Pressure Reducing Valves).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Port size M5 x 0.8
Medium Air
Max. operating pressure 1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.7 MPa
Repeatability ±10% F.S.
Ambient temperature －5~＋60℃(No freezing)
Flow rate (※) 90 l/min
Optional attachment Pressure gauge (PG-25), L type bracket
Weight 100 g
Remark ※ Measured at primary pressure 0.7 MPa, secondary pressure; 0.6 MPa and pressure drop 0.1 MPa.
Series Mindman MAR100
