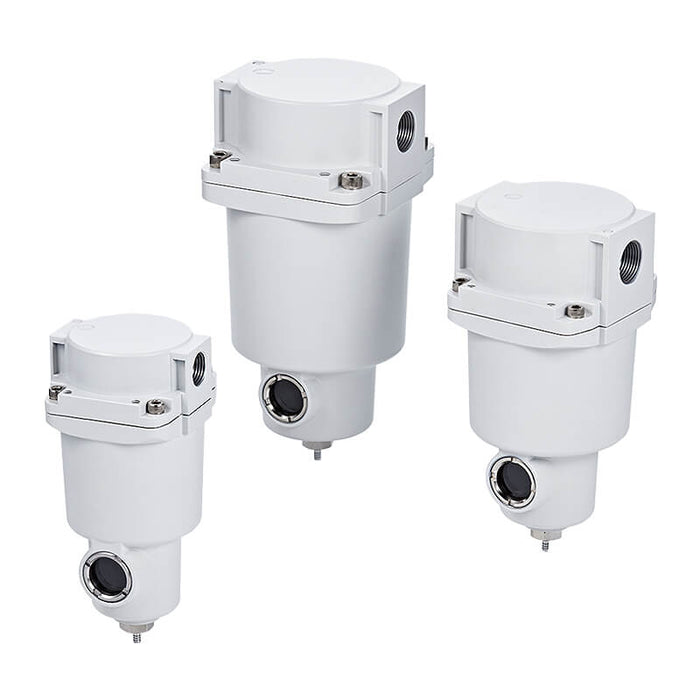

Mindman MAM series

Mindman MAMM55-D Precision Filter

SKU MAMM55-20A-D-NPT
by Mindman
$210.20 - $210.20
$210.20
$210.20 - $210.20
$210.20
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAM* (Precision Filter).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Body size 25, 35, 45, 55
Bore No. 8A, 10A, 15A, 20A, 25A
Port size 1/4, 3/8, 1/2, 3/4, 1
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (no freezing)
Filter element MAMG: Water separator(Removal rate 99%); MAMB: 3μm; MAMD: 0.3μm; MAMM: 0.01μm; MAMF: 0.01μm+Deodorization
Attchment L-type bracket
Sensor switch RDC(V), RQC(V)
Weight 610 g, 870 g, 1450 g, 2250 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.
Series Mindman MAM
