Mindman MAL501 series

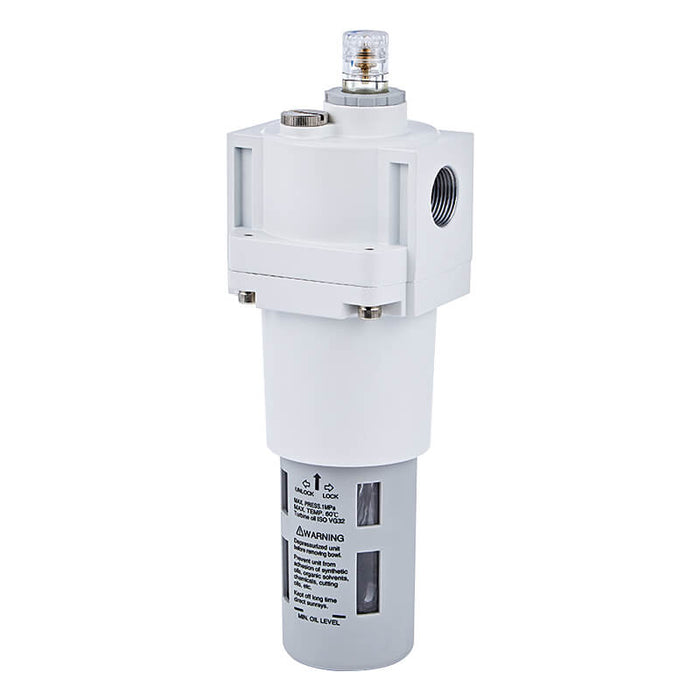

Mindman MAL501-20A Lubricator

SKU MAL501-20A-NPT
by Mindman
$77.97 - $77.97
$77.97
$77.97 - $77.97
$77.97
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAL (Lubricator).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 20A, 25A
Port size 3/4, 1
Medium Air
Max. operating pressure PC, Nylon bowl: 1 MPa / Metal bowl: 1.5 MPa
Proof pressure PC, Nylon bowl:1.5 MPa / Metal bowl: 2 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricating oil capacity 200 cm³
Min. flow for oil drip 25 l/min, 33 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Optional attachment L type bracket
Weight PC,Nylon bowl: 1260g / Metal bowl: 1380g
Series Mindman MAL501
