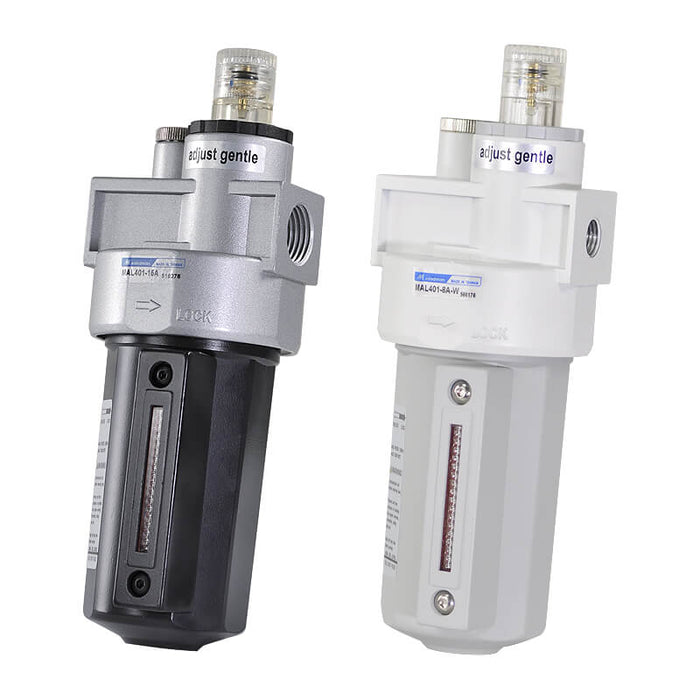

Mindman MAL401 series

Mindman MAL401-15A Lubricator

SKU MAL401-15A-NPT
by Mindman
$42.83 - $42.83
$42.83
$42.83 - $42.83
$42.83
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAL (Lubricator).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Max. operating pressure 1.5 MPa
Proof pressure 2 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricating oil capacity 200 cm³
Min. flow for oil drip 8A:30 l/min, 10A:65 l/min, 15A:80 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Max. flow rate (※) l/min 8A:1200 l/min, 10A:2000 l/min, 15A:2100 l/min
Optional attachment C type bracket
Weight 545 g
Remark Flow is at pressure P=0.7 MPa with purssure drop △P=0.03 MPa.(ANR)
Series Mindman MAL401

No additional information at this time.
