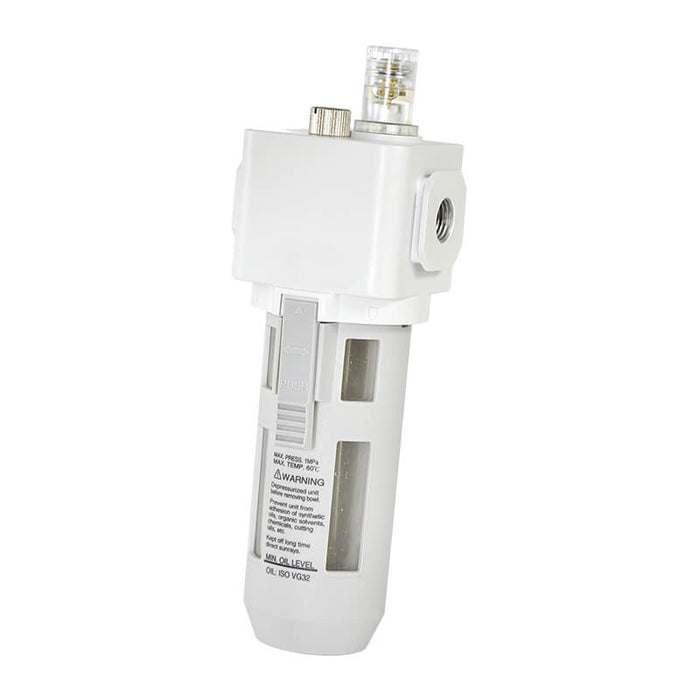

Mindman MAL302 series

Mindman MAL302-15A-N Lubricator

SKU MAL302-15A-N-NPT
by Mindman
$32.63 - $32.63
$32.63
$32.63 - $32.63
$32.63
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAL (Lubricator).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Max. operating pressure 1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricating oil capacity 65 cm³
Min. flow for oil drip 8A: 50 l /min, 10A,15A: 60 l /min
Recommended lubricating oil Turbine oil ISO-VG32
Optional attachment C type bracket
Weight 345 g
Series Mindman MAL302
