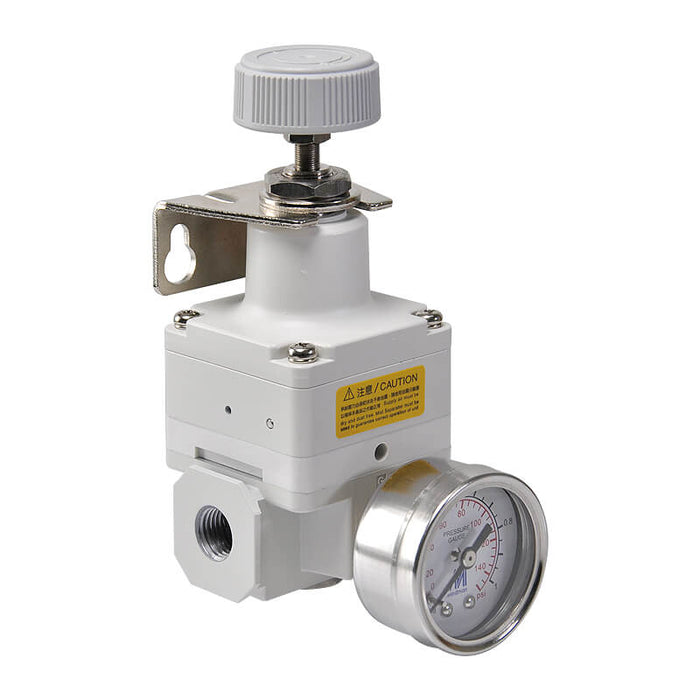

Mindman MAIR200 series

Mindman MAIR200-8A-4K Regulator

SKU MAIR200-8A-4K-NPT
by Mindman
$93.63 - $93.63
$93.63
$93.63 - $93.63
$93.63
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAIR (Precision Regulator).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A
Port size 1/4
Medium Air
Max. Operating pressure range 1 MPa
Min. operating pressure Setting pressure＋0.05 MPa
Proof pressure 1.5 MPa
Regulated pressure range 2K: 0.005~0.2 MPa,4K: 0.01~0.4 MPa,8K: 0.01~0.8 MPa
Sensitivity Within 0.2% of full span
Repeatability Within ±0.5% of full span
Air consumption (※) 4.4 l/min(ANR)
Ambient temperature －5~＋60℃ (No freezing)
Attachment Bracket
Option Pressure gauge (PG-40S)
Weight 300 g
Remark ※1. For supply pressure 1 MPa.; ※2. Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.
Series Mindman MAIR200
