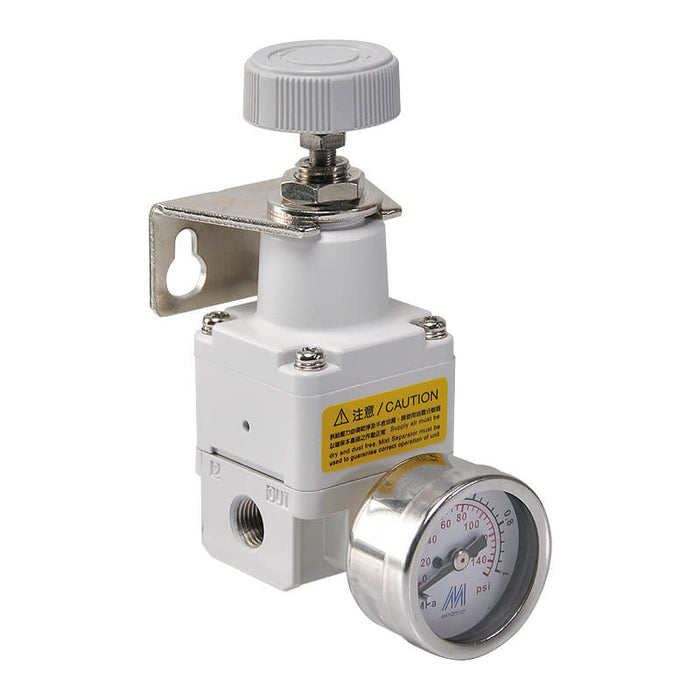

Mindman MAIR100 series

Mindman MAIR100-6A-4K Regulator

SKU MAIR100-6A-4K-NPT
by Mindman
$76.47 - $76.47
$76.47
$76.47 - $76.47
$76.47
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAIR (Precision Regulator).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 6A
Port size 1/8
Medium Air
Operating pressure range 1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 2K: 0.005~0.2 MPa,4K: 0.01~0.4 MPa,8K: 0.01~0.8 MPa
Sensitivity Within(E) 0.2% of full span
Repeatability Within(E) ±0.5% of full span
Air consumption (※) 4.4 l/min(ANR)
Ambient temperature －5~＋60℃ (No freezing)
Attachment Bracket
Option Pressure gauge (PG-33S)
Weight 150 g
Remark ※1. For supply pressure 1 MPa.; ※2. Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.
Series Mindman MAIR100
