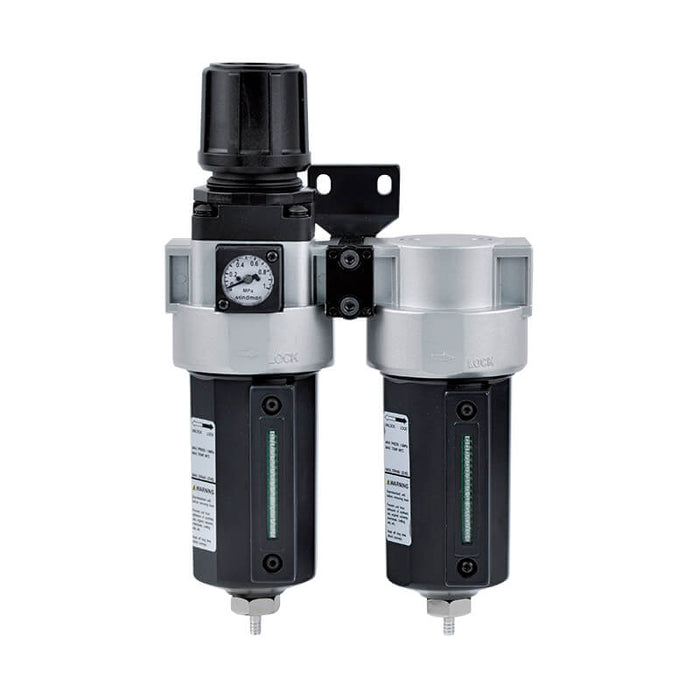

Mindman MAFRF401 series

Mindman MAFRF401-10A Filter Regulator

SKU MAFRF401-10A-NPT
by Mindman
$284.03 - $284.03
$284.03
$284.03 - $284.03
$284.03
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFRF401 series (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range(※) 0.05~1.5 MPa
Proof pressure 2 MPa
Regulated pressure range Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element 5μm+0.3μm
Standard attachment Pressure gauge (PG-20), L type bracket
Optional attachment C type bracket
Weight 1453 g
Remark ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MAFRF401
