Mindman MAFR501 series

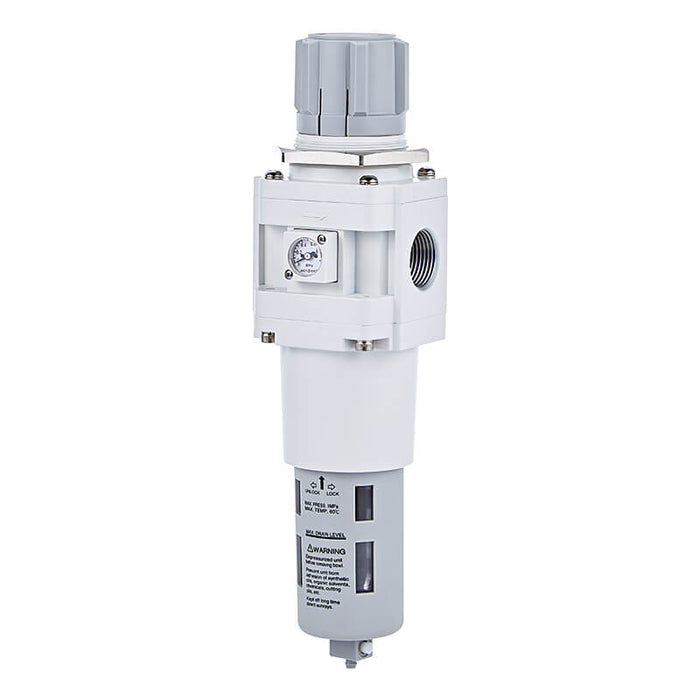

Mindman MAFR501-20A-D Filter Regulator

SKU MAFR501-20A-D-NPT
by Mindman
$174.81 - $174.81
$174.81
$174.81 - $174.81
$174.81
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFR (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 20A, 25A
Port size 3/4, 1
Medium Air
Operating pressure range (※) Nylon bowl, PC bowl: 0.05~1 MPa; Metal bowl: 0.05~1.5 MPa
Regulated pressure range Nylon bowl, PC bowl: 1.5 MPa; Metal bowl: 2 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element 40 μm
Drain capacity PC, Nylon bowl: 75 cm³ / Metal bowl: 70 cm³
Standard attachment Pressure gauge(PG-20), L type bracket
Weight PC,Nylon bowl: 1940g / Metal bowl: 2060g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MAFR501
