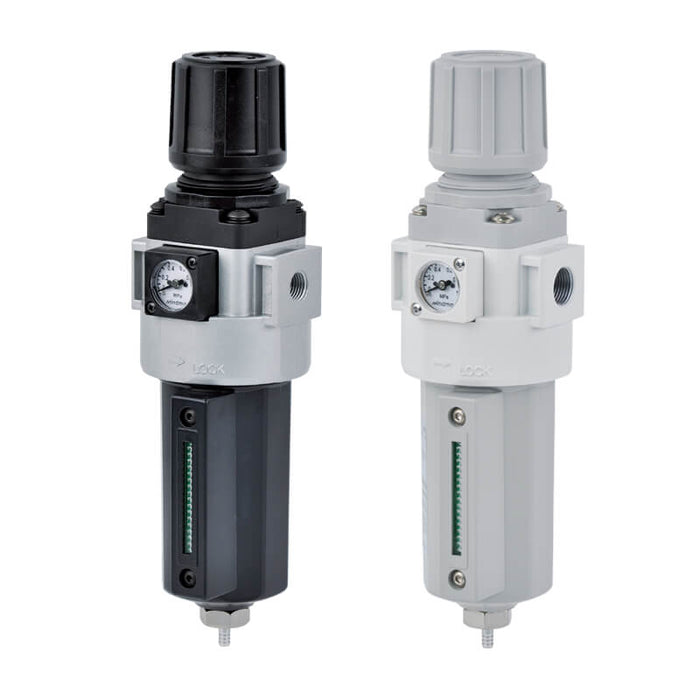

Mindman MAFR401 series

Mindman MAFR401-10A-B2 Filter Regulator

SKU MAFR401-10A-B2-NPT
by Mindman
$80.23 - $80.23
$80.23
$80.23 - $80.23
$80.23
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFR (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1.5 MPa
Proof pressure 2 MPa
Regulated pressure range Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 70 cm³
Standard attachment Pressure gauge (PG-20)
Optional attachment Screw fixed bracket
Weight 800 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MAFR401
