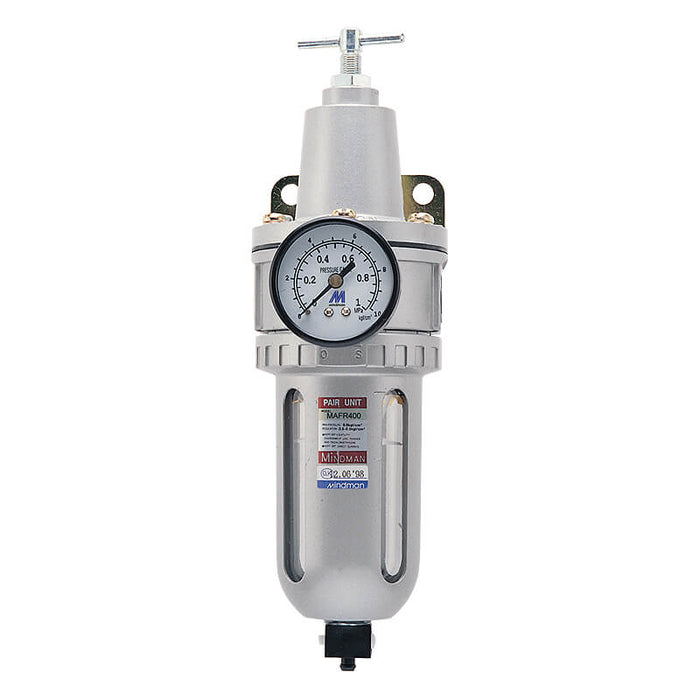

Mindman MAFR400 series

Mindman MAFR400-10A Filter Regulator

SKU MAFR400-10A-NPT
by Mindman
$75.66 - $75.66
$75.66
$75.66 - $75.66
$75.66
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFR (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 100 cm³
Standard attachment Pressure gauge (PG-50), L type bracket
Weight 1350 g
Remark ※. Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.
Series Mindman MAFR400
