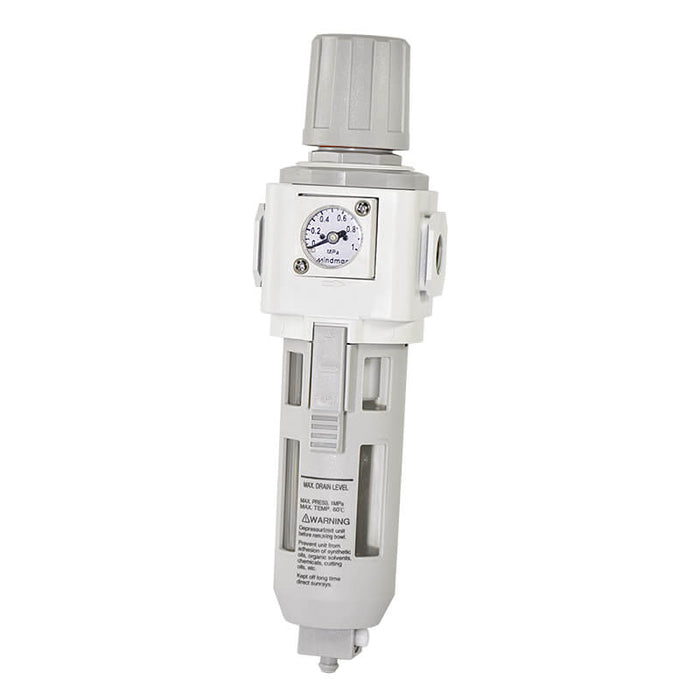

Mindman MAFR302 series

Mindman MAFR302K-15A Filter Regulator

SKU MAFR302K-15A-NPT
by Mindman
$57.90 - $57.90
$57.90
$57.90 - $57.90
$57.90
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFR (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (no freezing)
Filter element Standard: 5μm Option: 40μm
Drain capacity 35 cm³
Standard attachment Pressure gauge (PG-20), L type bracket
Optional attachment Z type bracket
Weight 490 g
Remark ※1.Standard Unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure rang is 0.15~1 MPa.
Series Mindman MAFR302
