Mindman MAFR300L series

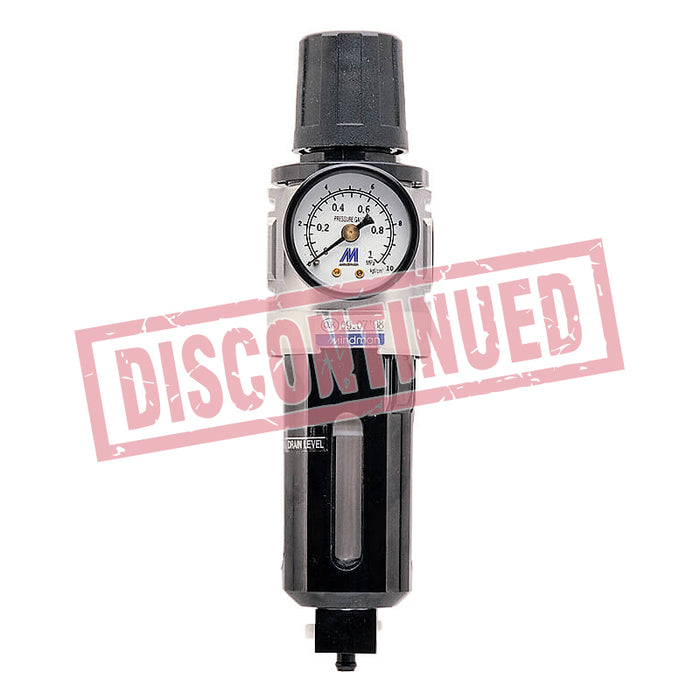

Mindman MAFR300L-8A-D Filter Regulator

SKU MAFR300L-8A-D-NPT
by Mindman
$68.86 - $68.86
$68.86
$68.86 - $68.86
$68.86
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFR (F.R. unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A,10A
Port size 1/4, 3/8
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:5μm Option:40μm
Drain capacity 40 cm³
Attachment Pressure gauge (PG-40), bracket
Weight 452 g
Remark ※1.Standard Unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1MPa.
Series Mindman MAFR300L
