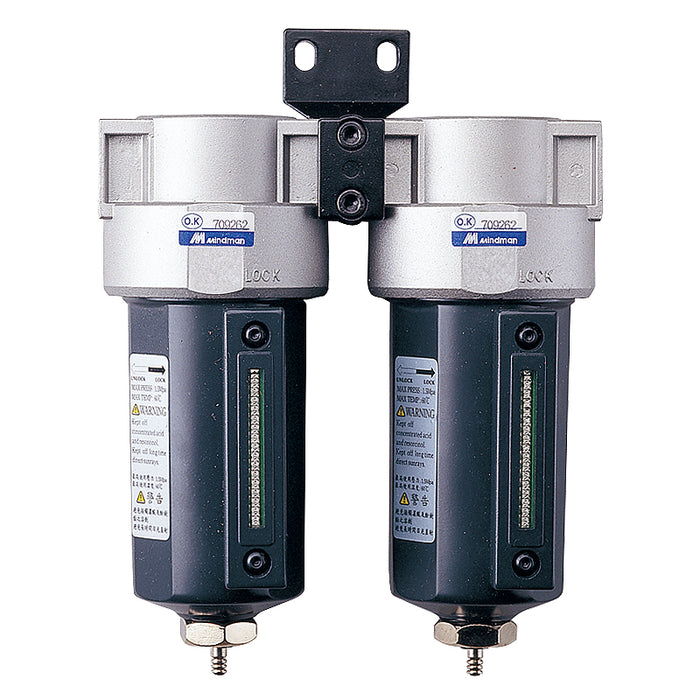

Mindman MAFF401 series

Mindman MAFF401DM-10A Filter

SKU MAFF401DM-10A-NPT
by Mindman
$258.85 - $258.85
$258.85
$258.85 - $258.85
$258.85
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAFF401AD / DM series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range 0.05~1.5 MPa
Proof pressure 2 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Filter element 0.3μm+0.01μm,5μm+0.3μm
Standard attachment L type bracket
Optional attachment C type bracket
Weight 1133 g
Series Mindman MAFF401
