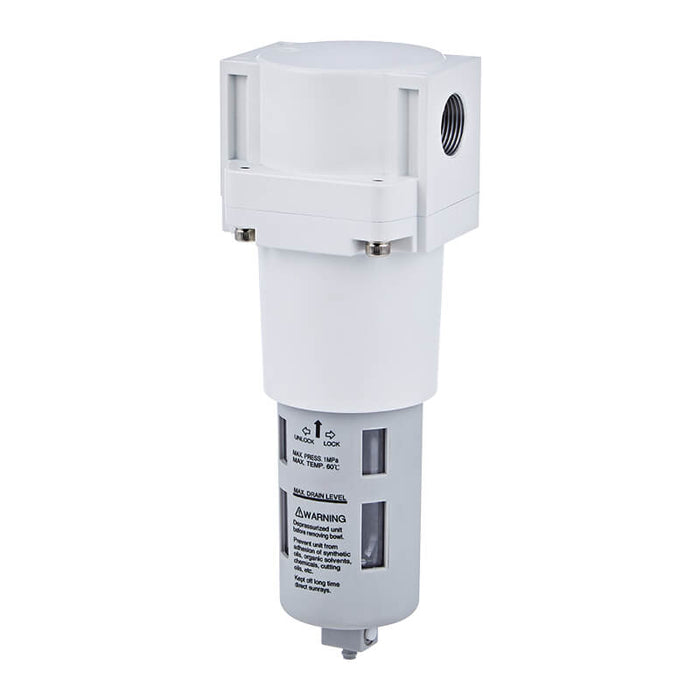

Mindman MAF501 series

Mindman MAF501D-25A-B Filter

SKU MAF501D-25A-B-NPT
by Mindman
$226.49 - $226.49
$226.49
$226.49 - $226.49
$226.49
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF501D / M series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 20A, 25A
Port size 3/4, 1
Medium Air
Operating pressure range (※) Nylon bowl, PC bowl: 0.05~1 MPa; Metal bowl: 0.05~1.5 MPa
Proof pressure Nylon bowl, PC bowl: 1.5 MPa; Metal bowl: 2 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element 40 μm
Drain capacity Nylon bowl, PC bowl: 75 cm3, Metal bowl: 70 cm3
Optional attachment L type bracket
Weight PC, Nylon bowl: 1180g / Metal bowl: 1300g
Remark ※1. Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2. Choose auto-drain FMRF300, the pressure range is; 0.15 ~ 1 MPa.
Series Mindman MAF501
