Mindman MAF403 series

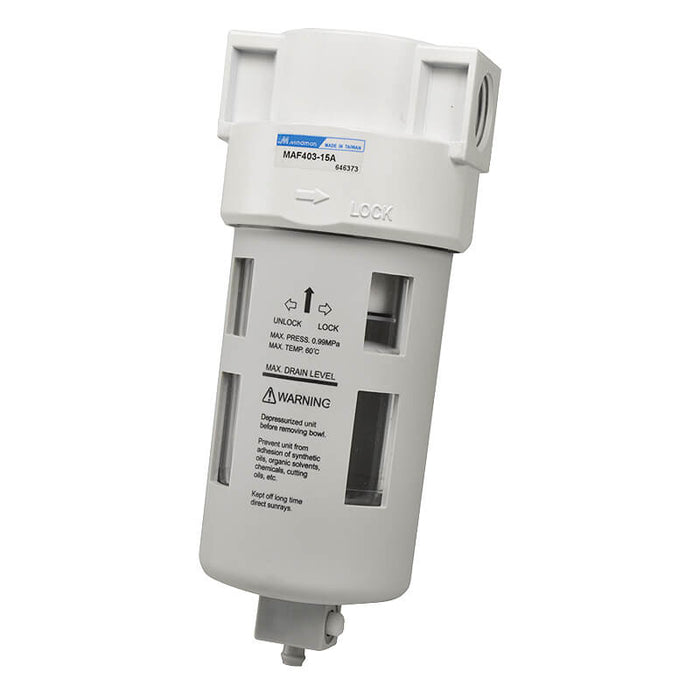

Mindman MAF403M-15A Filter

SKU MAF403M-15A-NPT
by Mindman
$74.35 - $74.35
$74.35
$74.35 - $74.35
$74.35
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF403A / D / M series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (no freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 75 cm³
Optional attachment C type bracket
Weight 345 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.
Series Mindman MAF403

No additional information at this time.
