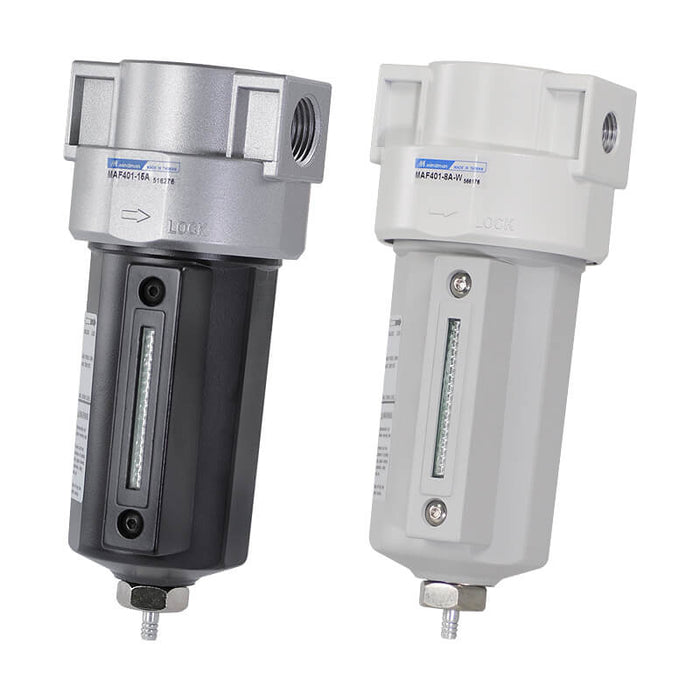

Mindman MAF401 series

Mindman MAF401M-10A Filter

SKU MAF401M-10A-NPT
by Mindman
$121.04 - $121.04
$121.04
$121.04 - $121.04
$121.04
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF401A / D / M series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※1.2) 0.05~1.5 MPa
Proof pressure 2 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 70 cm³
Max. flow rate (※3) l/min.(ANR) 1300, 2000, 2500
Optional attachment C type bracket
Weight 480 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.; ※3. Flow is at pressure P=0.7 MPa with pressure drop △P=0.03 MPa.
Series Mindman MAF401
