Mindman MAF401A series

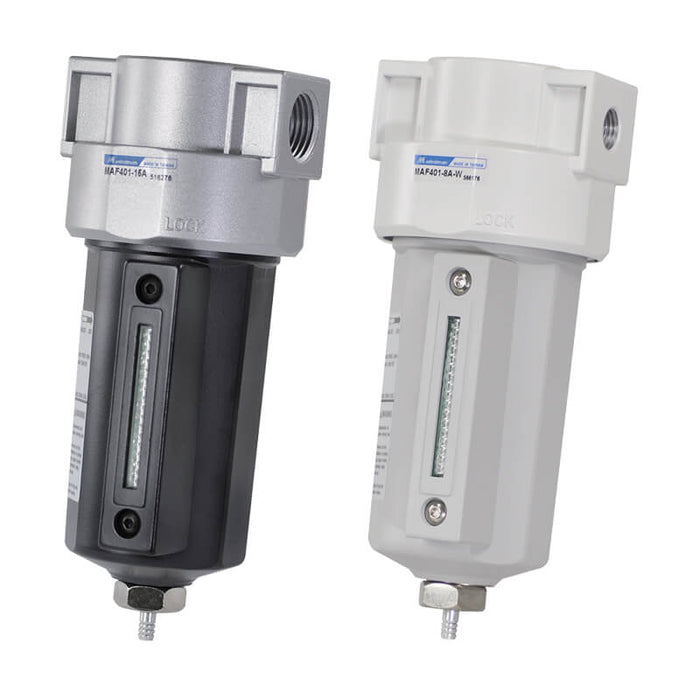

Mindman MAF401A-10A-B Filter

SKU MAF401A-10A-B-NPT
by Mindman
$40.35 - $40.35
$40.35
$40.35 - $40.35
$40.35
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF401A / D / M series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range(※) 0.05~1.5 MPa
Proof pressure 2 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Filter element 5μm,0.3μm,0.01μm
Drain capacity 70 cm³
Optional attachment C type bracket
Weight 480 g
Remark ※1.Standard Unit contains semi-auto-drain function when operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1MPa.
Series Mindman MAF401A
