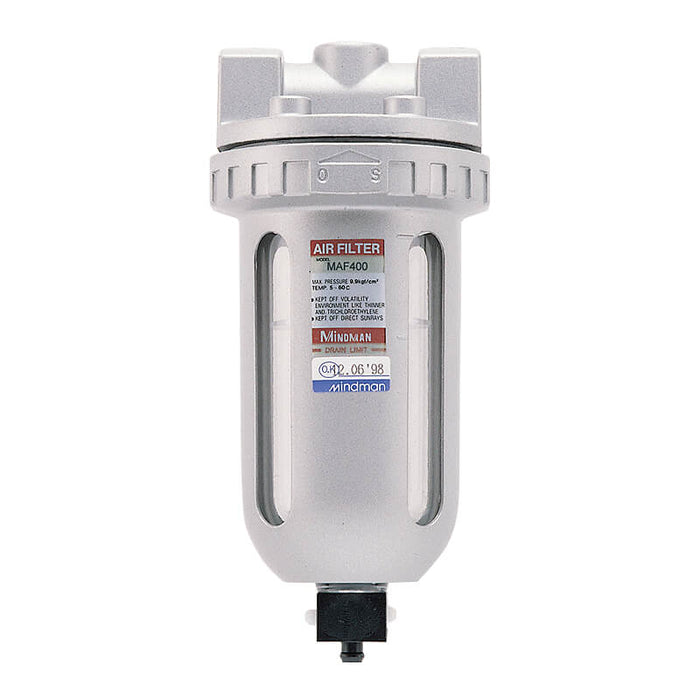

Mindman MAF400 series

Mindman MAF400-15A Filter

SKU MAF400-15A-NPT
by Mindman
$31.86 - $31.86
$31.86
$31.86 - $31.86
$31.86
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF* (Filter).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※1.2.) 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 100 cm³
Max. flow rate (※3) l/min.(ANR) 1500, 2000, 2200
Optional attachment L type bracket
Weight 550 g
Remark ※1.Sandard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.; ※3.Flow is at pressure P=0.7 MPa with pressure drop △P=0.03 MPa.
Series Mindman MAF400
