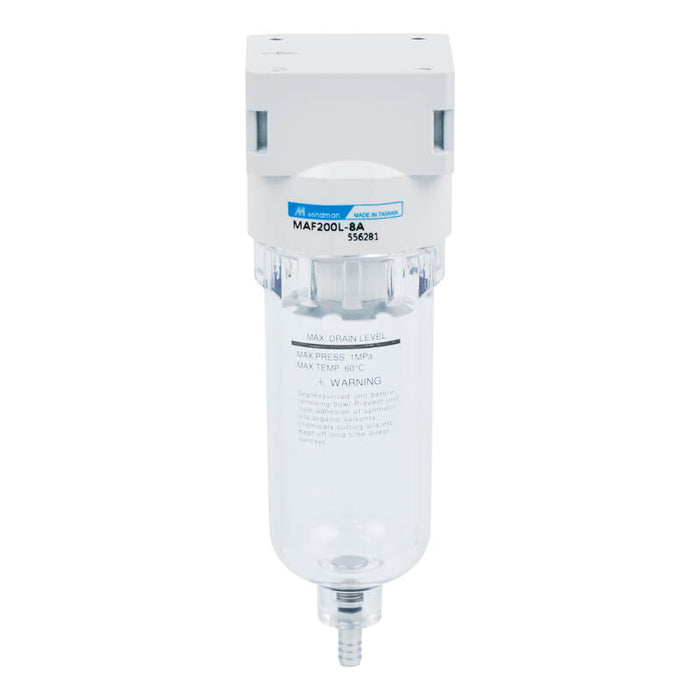

Mindman MAF200L series

Mindman MAF200LM Filter

SKU MAF200LM-NPT
by Mindman
$68.98 - $68.98
$68.98
$68.98 - $68.98
$68.98
Availability:
In stock
Availability:
In stock
Availability:
In stock

MAF200D / M series.

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Bore No. 6A, 8A
Port size 1/8, 1/4
Medium Air
Operating pressure range (*1,2) 0.05~1 MPa; 0.15~1 MPa (MAF200L-D)
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 25 cm³; 18 cm³ (MAF200L-D)
Optional attachment L type bracket
Weight 155 g
Remark *1.Semi-auto drain (N.O. type): The drain port automatically discharges accumulated water when pressure is below 0.05 MPa.; *2.Auto drain (N.C. type): Residual water remaining in the bowl after air shut-off or drainage is normal.; *3.Poor air quality may cause product malfunction. Installing an upstream pre-filter (e.g., 40 μm) is recommended.; *4.Bowls for semi-auto drain and auto drain valve (D) are not interchangeable.
Series Mindman MAF200L
