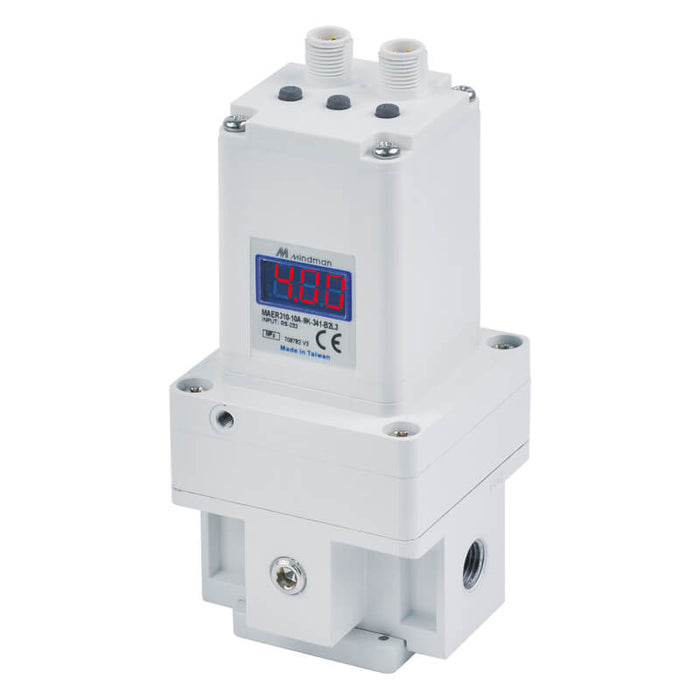

Mindman MAER310 series

Mindman MAER310-8A-9K Electro-Pneumatic Regulator (RS-232/RS-485)

SKU MAER310-8A-9K-104-NPT
by Mindman
$465.93 - $465.93
$465.93
$465.93 - $465.93
$465.93
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MAER310 electro-pneumatic regulator, 1/4" port (8A), pressure range 0~0.9 MPa.

Choose the communication type, pressure display unit and port thread; the full Mindman ordering code is shown as the SKU (MAER310-8A-9K-[comm][display]-[thread]). Bracket and cables are sold separately.

Specifications

Pressure range 1K, 5K, 9K
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Proof pressure 1K: 0.3 MPa; 5K, 9K: 1.5 MPa
Ambient temperature +5~+50°C (No condensation)
Min. supply pressure Set pressure +0.1 MPa
Max. supply pressure 1 MPa
Setting pressure range 0.005~0.9 MPa
Power supply Connector: M12 plug, 4-pin, A-coded; Voltage: DC24V±10%; Current: DC24V: 180mA or less
Precision Linearity: Within ±1% (F.S.); Hysteresis: Within 0.5% (F.S.); Repeatability: Within ±0.5% (F.S.); Sensitivity: Within 0.2% (F.S.)
Temperature characteristics Within ±0.2% (F.S.)/°C
Output pressure display Precision: ±2% F.S. ±1 digit; Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1
Enclosure IP65
Weight Main: 740 g; Accessories: Bracket: Approx. 86g(B1), 80g(B2); Power cable connector: Approx. 130g(3m); Communication cable connector: Approx. 140g(3m)
Series Mindman MAER310
