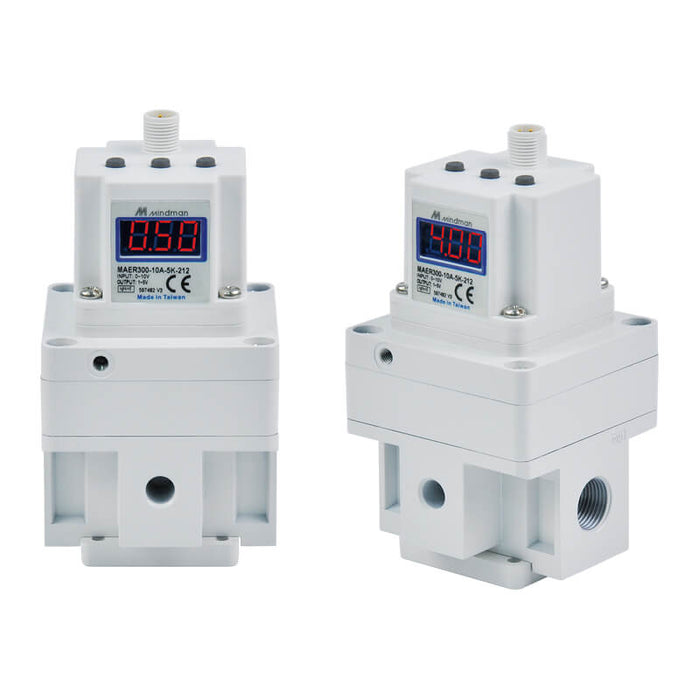

Mindman MAER300 series

Mindman MAER300-15A-9K Electro-Pneumatic Regulator

SKU MAER300-15A-9K-114-NPT
by Mindman
$323.97 - $323.97
$323.97
$323.97 - $323.97
$323.97
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MAER300 electro-pneumatic regulator, 1/2" port (15A), pressure range 0~0.9 MPa.

Choose the signal input / output, pressure display unit and port thread; the full Mindman ordering code is shown as the SKU (MAER300-15A-9K-[input][output][display]-[thread]). Bracket and cables are sold separately.

Specifications

Pressure range 1K, 5K, 9K
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Proof pressure 1K: 0.3 MPa; 5K, 9K: 1.5 MPa
Ambient temperature +5~+50°C (No condensation)
Min. supply pressure Set pressure +0.1 MPa
Max. supply pressure 0.2~1 MPa
Setting pressure range (*1) 0.005~0.9 MPa
Power supply Connector: M12 plug, 4-pin, A-coded; Voltage: DC24V±10%; Current: DC24V: 80mA or less
Signal input Current type: DC4~20 mA; Voltage type: DC0~5V, DC0~10V; Preset input (*2): 4 points
Input impedance Current type: ≤ 400Ω; Voltage type: Approx. ≤ 50kΩ; Approx. ≤ 1000kΩ
Signal output; (Monitor output) Analog output: Voltage type DC1~5V (Load impedance 1kΩ or above); Current type DC4~20mA (Load impedance 750Ω or less); Switch output: NPN,PNP: Max. 24V, 160mA
Linearity Within ±1% (F.S.)
Hysteresis Within 0.5% (F.S.)
Repeatability Within ±0.5% (F.S.)
Sensitivity Within 0.2% (F.S.)
Temperature characteristics ±0.2%以下(F.S.)/°C
Output pressure display (*3) Precision: ±2% F.S. ±1 digit; Min. unit: MPa:0.001, kgf/cm²:0.01, bar:0.01, psi:0.1, kPa:1
Enclosure Equivalent to IP65
Weight Main: 690 g; Accessories: Bracket: Approx. 86g(B1), 80g(B2); Cable connector: Approx. 55g(1m), 130g(3m)
Remark *1. Minium setting pressure is equal to 1% F.S..; *2. For safety reasons, it is recommended that one of the preset pressures be set to 0 MPa.; *3. Linearity setting and preset pressure setting value both are set by the minimum unit of the output pressure display.; *4. The above characteristics are confined to no flow in the pipeline. When air is consumed on the output side, pressure may become unstable.; *5. The above characteristics apply in a control pressure of 10% to 90% when power voltage is 24 VDC, ambient temperature is 25±3°C, no-loading and working pressure set at the maximum control pressure.
Series Mindman MAER300
