Mindman MAER210 series

Mindman MAER210-10A-5K Electro-Pneumatic Regulator (RS-232/RS-485)

SKU MAER210-10A-5K-104-NPT
by Mindman
$458.23 - $458.23
$458.23
$458.23 - $458.23
$458.23
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

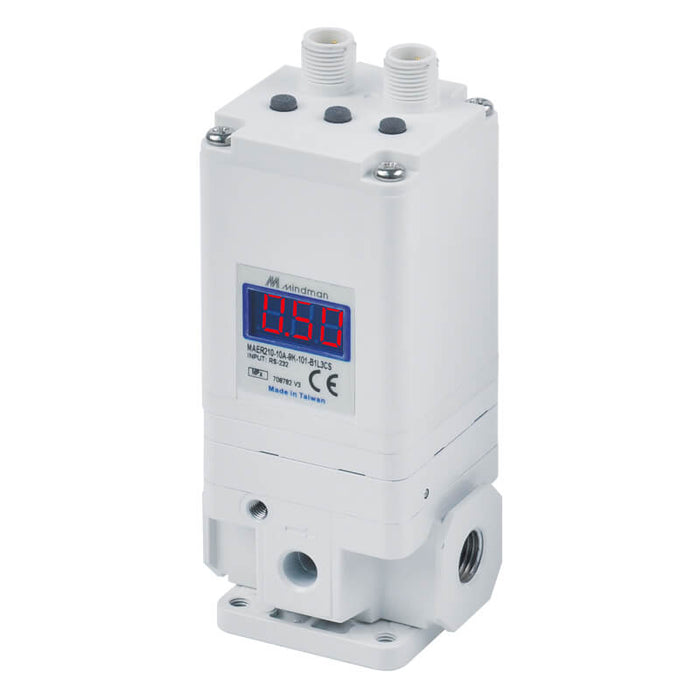

Mindman MAER210 electro-pneumatic regulator, 3/8" port (10A), pressure range 0~0.5 MPa.

Choose the communication type, pressure display unit and port thread; the full Mindman ordering code is shown as the SKU (MAER210-10A-5K-[comm][display]-[thread]). Bracket and cables are sold separately.

Specifications

Pressure range 1K, 5K, 9K
Bore No. 8A, 10A
Port size 1/4, 3/8
Medium Air
Proof pressure 1K: 0.3 MPa; 5K, 9K: 1.5 MPa
Ambient temperature +5~+50°C (No condensation)
Min. supply pressure Set pressure+0.1 MPa
Max. supply pressure 1 MPa
Setting pressure range 0.005~0.9 MPa
Power supply Connector: M12 plug, 4-pin, A-coded; Voltage: DC24V±10%; Current: 180mA or less
Precision Linearity: Within ±1% (F.S.); Hysteresis: Within 0.5% (F.S.); Repeatability: Within ±0.5% (F.S.); Sensitivity: Within 0.2% (F.S.)
Temperature characteristics Within ±0.2% (F.S.)/°C
Output pressure display Precision: ±2% F.S. ±1 digit; Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1
Enclosure IP65
Weight Main: 410 g; Accessories: Bracket: Approx. 86g(B1), 80g(B2); Power cable connector: Approx. 130g(3m); Communication cable connector: Approx. 140g(3m)
Series Mindman MAER210
