M124A-SFW-PVC-3M

Specifications

Pressure range 1K, 5K, 9K
Bore No. 8A, 10A
Port size 1/4, 3/8
Medium Air
Proof pressure 1K: 0.3 MPa; 5K, 9K: 1.5 MPa
Ambient temperature +5~+50°C (No condensation)
Min. supply pressure Set pressure+0.1 MPa
Max. supply pressure 1 MPa
Setting pressure range 0.005~0.9 MPa
Power supply Connector: M12 plug, 4-pin, A-coded; Voltage: DC24V±10%; Current: DC24V: 80mA or less
Signal input Current type: DC4~20 mA; Voltage type: DC0~5V, DC0~10V; Preset input: 4 points
Input impedance Current type: ≤ 400Ω; Voltage type: Approx. ≤ 50kΩ; Preset type: Approx. ≤ 1000kΩ
Signal output; (Monitor output) Analog output: Current type DC4~20mA (Load impedance 1kΩ or less); Analog output: Voltage type DC1~5V (Load impedance 750Ω or above); Switch output: NPN, PNP: Max. 24V, 160mA
Linearity 1K: Within ±2% (F.S.); 5K, 9K: Within ±1% (F.S.)
Hysteresis Within 1% (F.S.)
Repeatability Within ±1% (F.S.)
Sensitivity Within 0.4% (F.S.)
Temperature characteristics Within ±0.2% (F.S.)/°C
Output pressure display Precision: ±2% F.S. ±1 digit; Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1
Enclosure Equivalent to IP65
Weight Main: 360 g; Bracket: Approx. 86g(B1), 80g(B2); Cable connector: Approx. 55g(1m), 130g(3m)

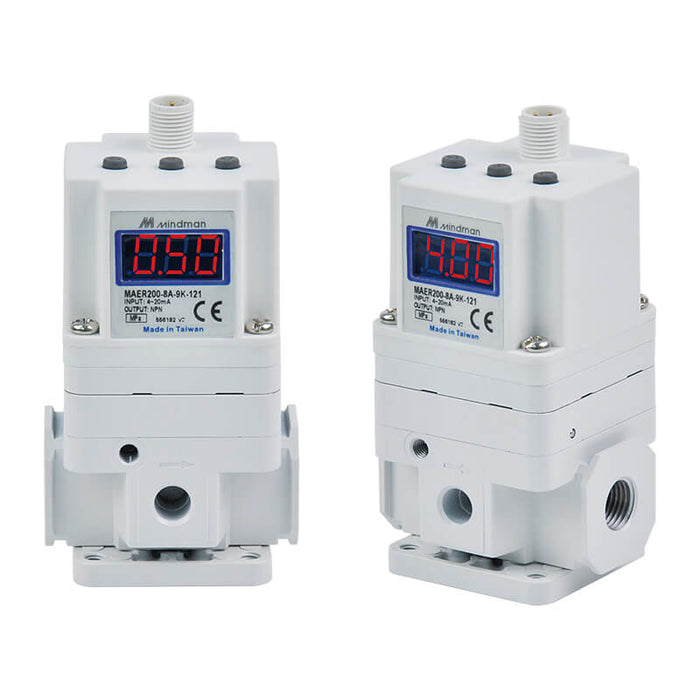

Series Mindman MAER200
