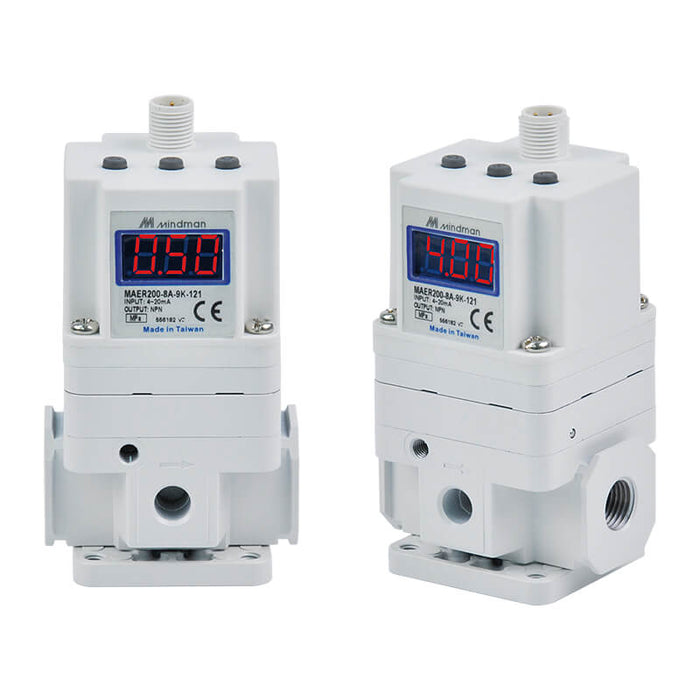

Mindman MAER200 series

Mindman MAER200-10A-9K Electro-Pneumatic Regulator

SKU MAER200-10A-9K-114-NPT
by Mindman
$311.55 - $311.55
$311.55
$311.55 - $311.55
$311.55
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MAER200 electro-pneumatic regulator, 3/8" port (10A), pressure range 0~0.9 MPa.

Choose the signal input / output, pressure display unit and port thread; the full Mindman ordering code is shown as the SKU (MAER200-10A-9K-[input][output][display]-[thread]). Bracket and cables are sold separately.

Specifications

Pressure range 1K, 5K, 9K
Bore No. 8A, 10A
Port size 1/4, 3/8
Medium Air
Proof pressure 1K: 0.3 MPa; 5K, 9K: 1.5 MPa
Ambient temperature +5~+50°C (No condensation)
Min. supply pressure Set pressure+0.1 MPa
Max. supply pressure 1 MPa
Setting pressure range 0.005~0.9 MPa
Power supply Connector: M12 plug, 4-pin, A-coded; Voltage: DC24V±10%; Current: DC24V: 80mA or less
Signal input Current type: DC4~20 mA; Voltage type: DC0~5V, DC0~10V; Preset input: 4 points
Input impedance Current type: ≤ 400Ω; Voltage type: Approx. ≤ 50kΩ; Preset type: Approx. ≤ 1000kΩ
Signal output; (Monitor output) Analog output: Current type DC4~20mA (Load impedance 1kΩ or less); Analog output: Voltage type DC1~5V (Load impedance 750Ω or above); Switch output: NPN, PNP: Max. 24V, 160mA
Linearity 1K: Within ±2% (F.S.); 5K, 9K: Within ±1% (F.S.)
Hysteresis Within 1% (F.S.)
Repeatability Within ±1% (F.S.)
Sensitivity Within 0.4% (F.S.)
Temperature characteristics Within ±0.2% (F.S.)/°C
Output pressure display Precision: ±2% F.S. ±1 digit; Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1
Enclosure Equivalent to IP65
Weight Main: 360 g; Bracket: Approx. 86g(B1), 80g(B2); Cable connector: Approx. 55g(1m), 130g(3m)
Series Mindman MAER200
