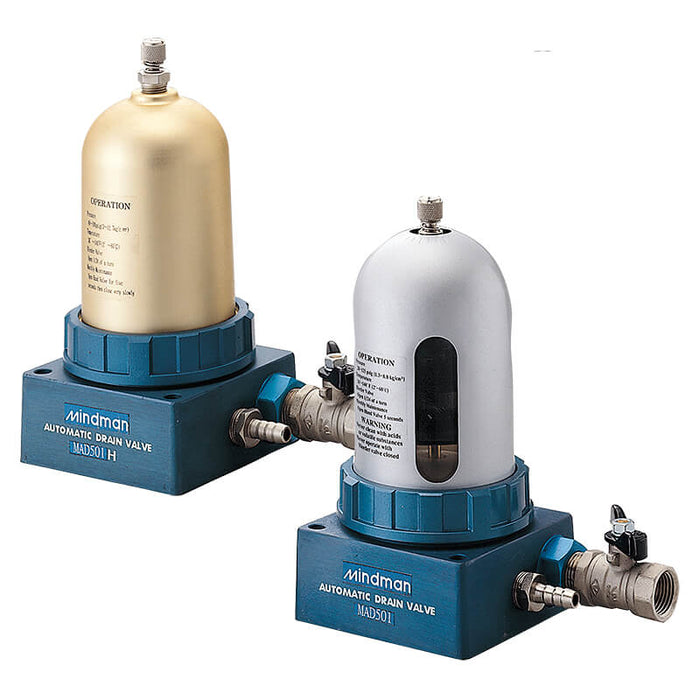

MAD (Drain Trap / Auto-drainer).

Specifications

Dimensions 160mm×100mm×200mm
Inlet Rc1/2
Outlet Rc1/2
Automatic outlet Rc3/8, 5/16” HOSE
Operating pressure range (※) MAD501: 0.13~0.88 MPa, MAD501H:0.3~1.27 MPa
Ambient temperature ＋2~＋60℃
Min. equipment requirement MAD501:180 l/min (about l HP), MAD501H:250 l/min (about 2 HP)
Max. condensate discharge rate MAD501:15 gal/hour (57 l/h), MAD501H:12 gal/hour (46 l/h)
Bowl MAD501:Polycarbonate(PC), MAD501H:Aluminium
Weight 1.3 kg, 1.4 kg
Remark ※1. Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2. Port thread G. NPT. are also available.
Series Mindman MAD501
