Mindman MACT403 series

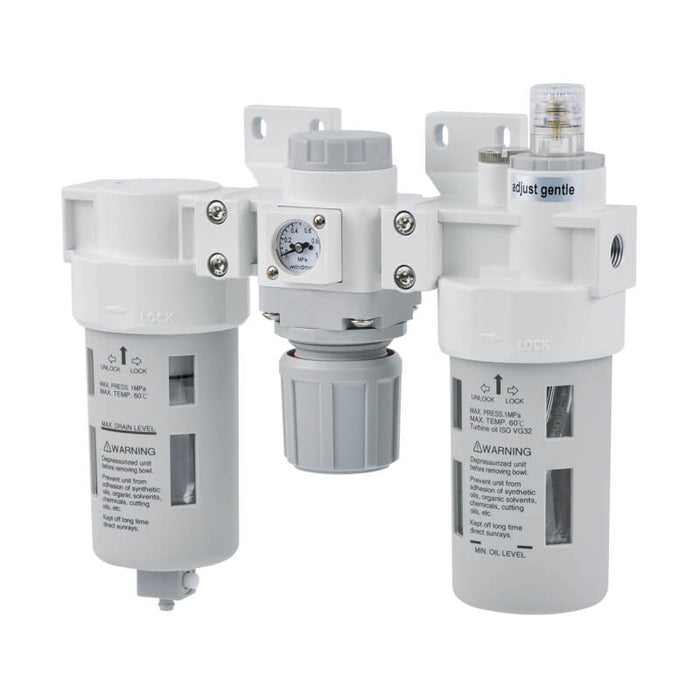

Mindman MACT403-10A-DP Air Preparation Unit

SKU MACT403-10A-DP-NPT
by Mindman
$204.81 - $204.81
$204.81
$204.81 - $204.81
$204.81
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACC / MACT (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAF403, MAR403, MAL403
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.1~0.85 MPa
Ambient temperature －5~＋60℃ (no freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 75 cm³
Lubricating oil capacity 200 cm³
Min. flow for oil drip 8A: 30 l/min, 10A: 65 l/min, 15A: 80 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Standard attachment Pressure gauge (PG-20), L-type bracket
Weight 1345 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MACT403
