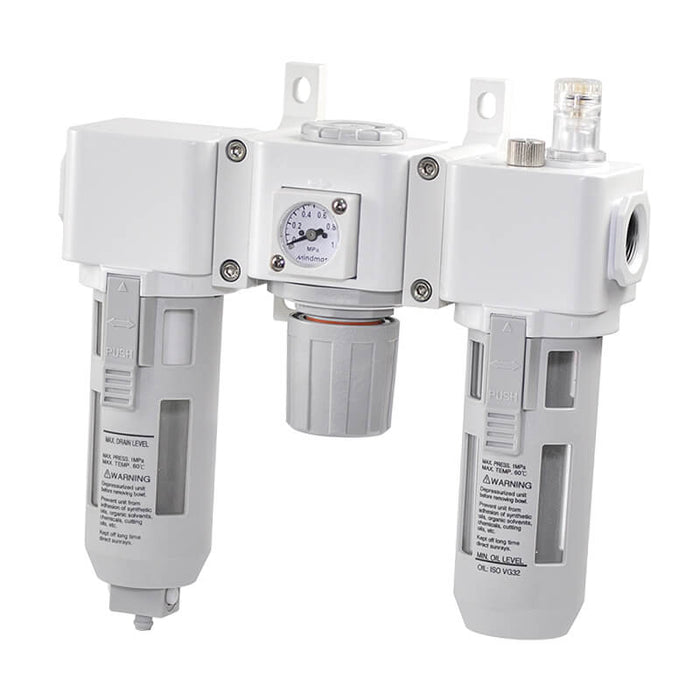

Mindman MACT302 series

Mindman MACT302-8A-D Air Preparation Unit

SKU MACT302-8A-D-NPT
by Mindman
$149.75 - $149.75
$149.75
$149.75 - $149.75
$149.75
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACC / MACT (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAF302, MAR302, MAL302
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Effective orifice 8A:32mm² 、 10A,15A: 34mm²
Ambient temperature －5~＋60℃ (no freezing)
Filter element Standard: 5μm Option: 40μm
Drain capacity 35 cm³
Lubricating oil capacity 65 cm³
Min. flow for oil drip 8A: 50 l/min 、 10A, 15A: 60 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Standard attachment Pressure gauge (PG-20), T-type bracket
Weight 1115 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MACT302
