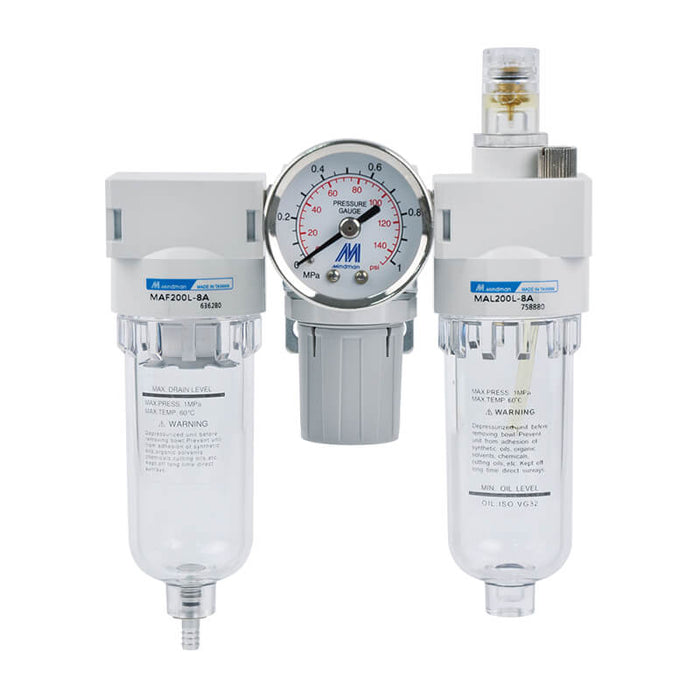

Mindman MACT200L series

Mindman MACT200L-6A Air Preparation Unit

SKU MACT200L-6A-NPT
by Mindman
$69.22 - $69.22
$69.22
$69.22 - $69.22
$69.22
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACC / MACT (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAF200L, MAR201, MAL200L
Bore No. 6A, 8A
Port size 1/8, 1/4
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 25 cm³
Lubricating oil capacity 35 cm³
Min. flow for oil drip 6A: 35 l/min, 8A: 50 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Standard attachment Pressure gauge (PG-40), L type bracket
Optional attachment T type bracket
Weight 465g
Remark ※ Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.
Series Mindman MACT200L
