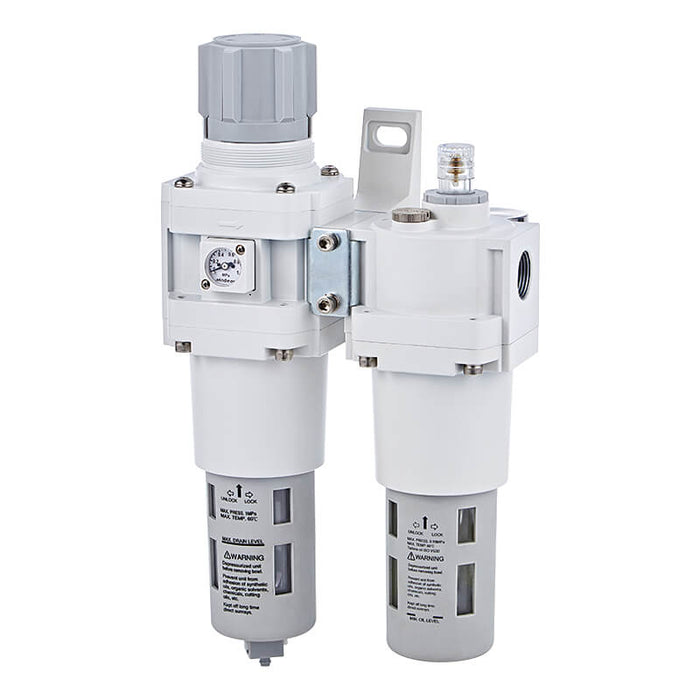

Mindman MACP501-25A-D Air Preparation Unit

Name: Mindman MACP501-25A-D Air Preparation Unit
Brand: Mindman
SKU: MACP501-25A-D-NPT
Price: 234.21 USD
Availability: InStock

SKU MACP501-25A-D-NPT

by Mindman

$234.21 - $234.21

$234.21

$234.21 - $234.21

$234.21

Availability:

In stock

Availability:

In stock

Availability:

In stock

Quantity

Description

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Components	MAFR501,MAL501
Bore No.	20A,25A
Port size	3/4, 1
Medium	Air
Operating pressure range (※)	PC,Nylon bowl: 0.05~1 MPa; Metal bowl: 0.05~1.5 MPa
Proof pressure	PC,Nylon bowl: 1.5 MPa; Metal bowl: 2 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Filter element	40 μm
Drain capacity	PC, Nylon: 75 cm³, Metal: 70 cm³
Lubricating oil capacity	200 cm³
Min. flow for oil drip	25 l/min, 33 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge (PG-20), T type bracket
Weight	PC,Nylon bowl: 3480g / Metal bowl: 3720g
Remark	※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series	Mindman MACP501
