Mindman MACP501 series

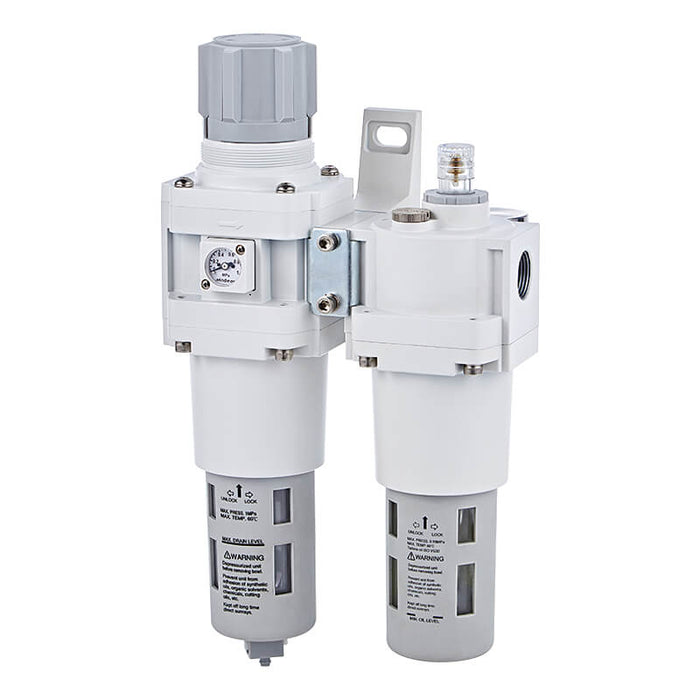

Mindman MACP501-25A Air Preparation Unit

SKU MACP501-25A-NPT
by Mindman
$215.34 - $215.34
$215.34
$215.34 - $215.34
$215.34
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAFR501,MAL501
Bore No. 20A,25A
Port size 3/4, 1
Medium Air
Operating pressure range (※) PC,Nylon bowl: 0.05~1 MPa; Metal bowl: 0.05~1.5 MPa
Proof pressure PC,Nylon bowl: 1.5 MPa; Metal bowl: 2 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element 40 μm
Drain capacity PC, Nylon: 75 cm³, Metal: 70 cm³
Lubricating oil capacity 200 cm³
Min. flow for oil drip 25 l/min, 33 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Attachment Pressure gauge (PG-20), T type bracket
Weight PC,Nylon bowl: 3480g / Metal bowl: 3720g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MACP501
