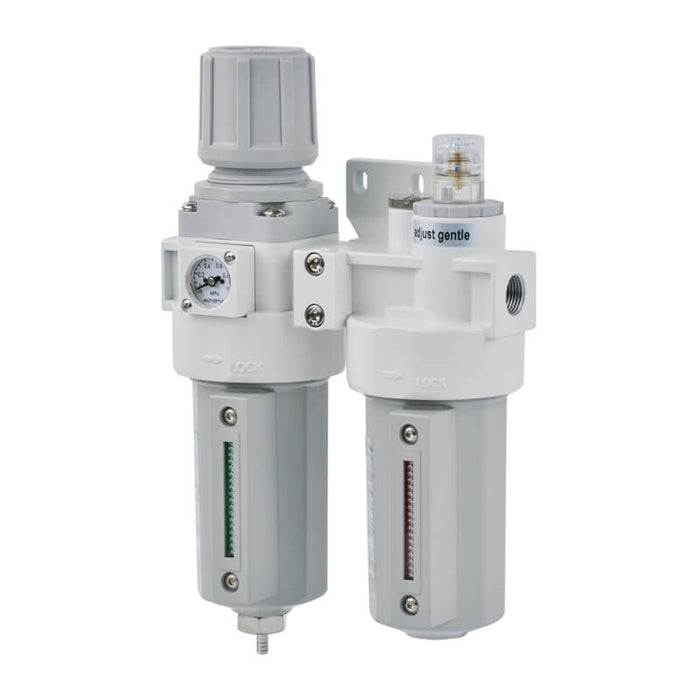

Mindman MACP401 series

Mindman MACP401-10A-D Air Preparation Unit

SKU MACP401-10A-D-NPT
by Mindman
$157.94 - $157.94
$157.94
$157.94 - $157.94
$157.94
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAFR401,MAL401
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1.5 MPa
Proof pressure 2 MPa
Regulated pressure range Standard type: 0.1~0.85 MPa,High pressure type: 0.1~1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 70 cm³
Lubricating oil capacity 200 cm³
Min. flow for oil drip 30 l/min~80 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Attachment Pressure gauge (PG-20), L-type bracket
Weight 1518 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.
Series Mindman MACP401
