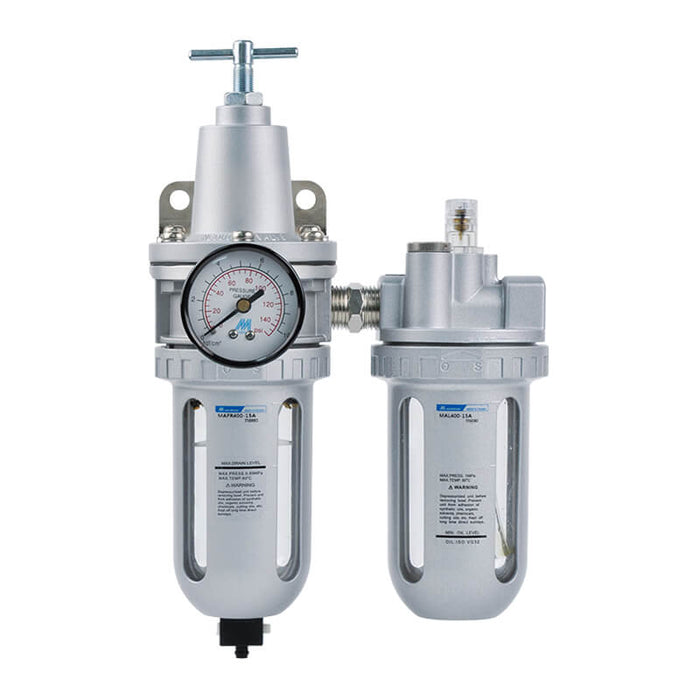

Mindman MACP400 series

Mindman MACP400-10A-D Air Preparation Unit

SKU MACP400-10A-D-NPT
by Mindman
$139.63 - $139.63
$139.63
$139.63 - $139.63
$139.63
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAFR400,MAL400
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 100 cm³
Lubricating oil capacity 200 cm³
Min. flow for oil drip 100 l/min~400 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Attachment Pressure gauge (PG-50), L type bracket
Weight 2300 g
Remark 1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; 2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.
Series Mindman MACP400
