Mindman MACP302 series

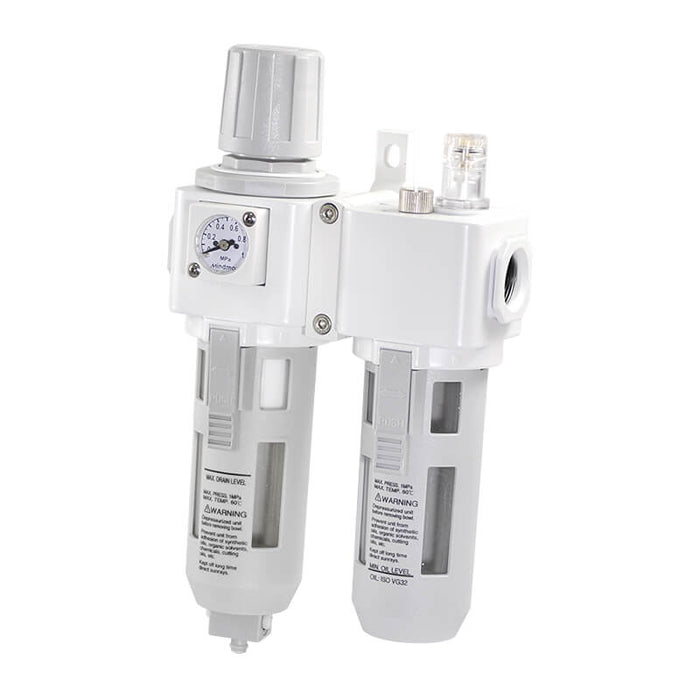

Mindman MACP302-15A-C Air Preparation Unit

SKU MACP302-15A-C-NPT
by Mindman
$87.42 - $87.42
$87.42
$87.42 - $87.42
$87.42
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAFR302, MAL302
Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (no freezing)
Filter element Standard: 5μm Option: 40μm
Drain capacity 35 cm³
Lubricating oil capacity 65 cm³
Min. flow for oil drip 8A: 50 l/min、10A,15A: 60 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Attachment Pressure gauge (PG-20), T-type bracket
Weight 845 g
Remark ※1.Standard unit contains semi-auto-drain function when; operating pressure below 0.05 MPa.; ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa.
Series Mindman MACP302
