Mindman MACP200 series

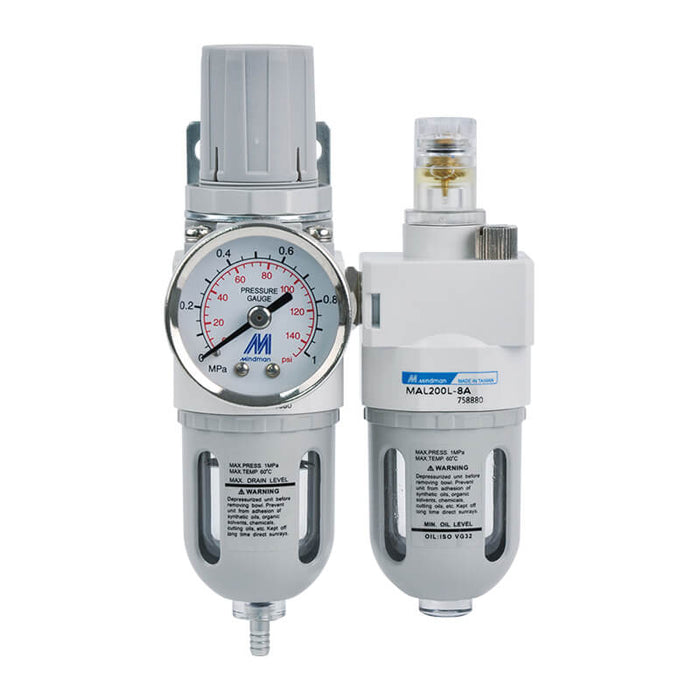

Mindman MACP200-6A-B Air Preparation Unit

SKU MACP200-6A-B-NPT
by Mindman
$78.21 - $78.21
$78.21
$78.21 - $78.21
$78.21
Availability:
In stock
Availability:
In stock
Availability:
In stock

MACP (F.R.L.unit).

Port thread: choose NPT, Rc (BSPT) or G (BSPP). The thread code is the last part of the Mindman ordering code (blank = Rc).

Specifications

Components MAFR200, MAL200
Bore No. 6A, 8A
Port size 1/8, 1/4
Medium Air
Operating pressure range (*1,2) 0.05~1 MPa
Proof pressure 1.5 MPa
Regulated pressure range 0.05~0.85 MPa
Ambient temperature －5~＋60℃ (No freezing)
Filter element Standard:40μm Option:5μm
Drain capacity 9.5cm³
Lubricating oil capacity 20 cm³
Min. flow for oil drip 35 l/min,50 l/min
Recommended lubricating oil Turbine oil ISO-VG32
Attachment Pressure gauge (PG-40), bracket
Weight 432g
Remark *1.Semi-auto drain (N.O. type): The drain port automatically discharges accumulated water when pressure is below 0.05 MPa.; *2.Auto drain (N.C. type): Residual water remaining in the bowl after air shut-off or drainage is normal.; *3.Poor air quality may cause product malfunction. Installing an upstream pre-filter (e.g., 40 μm) is recommended.; *4.Bowls for semi-auto drain and auto drain valve (D) are not interchangeable.
Series Mindman MACP200
