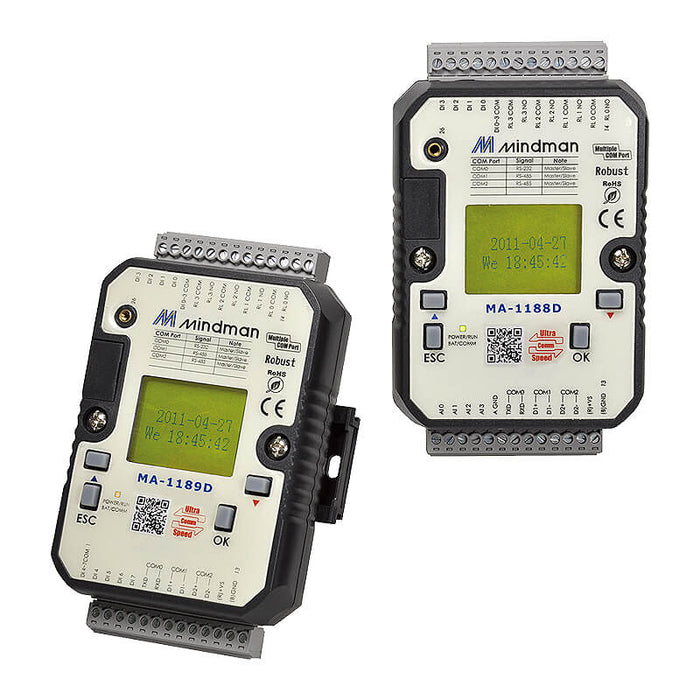

Mindman MA-118x series

Mindman MA Series Distributed Control System (Valve-Island I/O)

SKU MA-1188
by Mindman
$27.60 - $395.09
$172.52
$27.60 - $395.09
$172.52
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MA series distributed control system: MA-118* bus nodes, MA-10** remote modules, MA-15** industrial communication modules and accessories.

Select the options below; the full Mindman ordering code is shown as the SKU (see SKU).

Price is the Mindman list price.

Specifications

Operation Voltage 10~30VDC/24VDC
Inputs 8*DI(Isolation) status low:<2vdc status="" high:="">4VDC; 4*DI(Isolation) status low:<2vdc status="" high:="">4VDC
Outputs 4*Isolation (Relay), 4*Isolation (Transistor)
Input voltage range Digital ON: 4~30 VDC / OFF: 2 VDC(max); Digital ON: 4~30 VDC / OFF: 2 VDC(max) / Analog: 0~10VDC
Continuous current Relay: 5A (with resistive load), 2A (with inductive load); Transistor: 1.75A (OCP/OTP/UVLO)
Input Operating Frequency 250KHZ (Total 1000KHZ)
RTC/ Hold During Power Off Yes
Operation Temperature －20~＋75℃
Communication USB*1 & RS-485*2 & RS-232*1
Communication Baud Rate 2400~921600 bps
Degree Of Protection IP20
Base Controller IOs 12 IOS
Installation 35 mm DIN rail or Flush mounting
Dimension (W×H×D mm) 76.4×118.2×40.7 mm
Communication Cable CAB-MINIUSB60 or RS-485 or RS-232
Series Mindman MA-118x
