Mindman M83/M84/M88 series

Mindman M8 / M12 Cables with Connector (PVC)

SKU M83-SFSM-PVC-3M
by Mindman
$10.57 - $41.96
$34.63
$10.57 - $41.96
$34.63
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

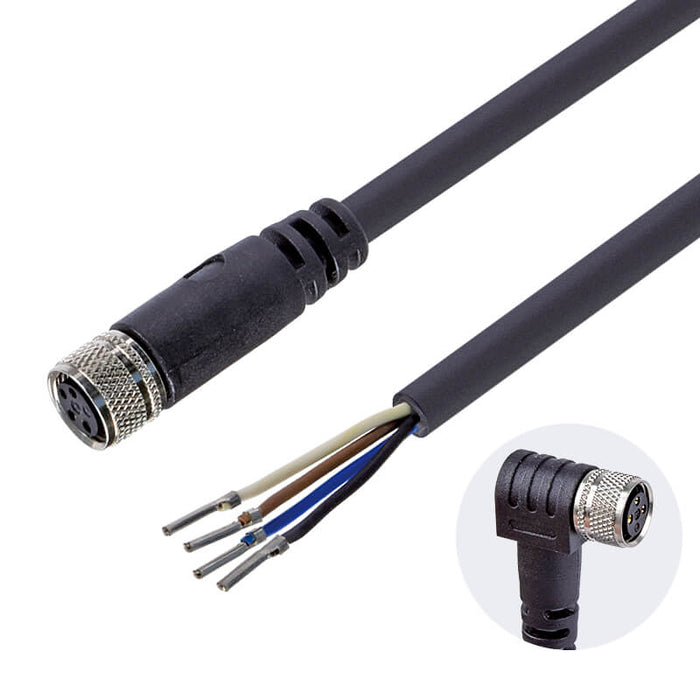

Mindman M8 (3/4/8-pin) and M12 A-coded (4-pin) cables with connector, PVC jacket. SF = straight female, LF = angle female, W = lead wire, SM = straight male.

Select the options below; the full Mindman ordering code is shown as the SKU (see SKU).

Price is the Mindman list price.

Specifications

Rated voltage 60V DC/AC
Rated current 3A, 1.5A
Contact material Gold plated brass
Contact bearer material PA
Housing material PP
Housing color Black
Cable material φ4.5, PVC / φ4.5, PUR
Cable color Grey (PVC), Black (PUR)
Cable conductor 24AWG
Temperature －20℃~＋80℃ (No freezing)
Protection class IEC60529 IP 67
Series Mindman M83/M84/M88
