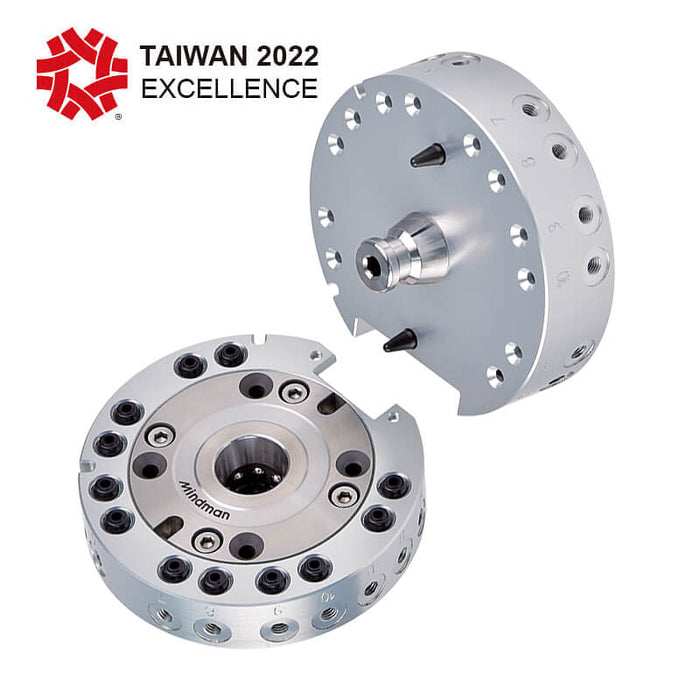

Mindman MCTC series

Mindman KBL / KBLV Cables for MCTC Tool Changers

SKU KBL-MCTC-20T-1M
by Mindman
$378.04 - $1,328.42
$378.04
$378.04 - $1,328.42
$378.04
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Cables for Mindman MCTC tool changers (sizes 20 and 41 use the same cable). KBL = straight, KBLV = vertical.

Select the options below; the full Mindman ordering code is shown as the SKU (KBL[V]-MCTC-20[R/T]-[length]).

Price is the Mindman list price.

Specifications

Size 20, 41
Recommended; handing weight (Size 20) Tool: 3.5 kg [ with tool plate (T) ] (※1); Workpiece: 21.5 kg; Total handing weight: 25 kg
Recommended; handing weight (Size 41) Tool: 18 kg [ with tool plate (T) ] (※1); Workpiece: 32 kg; Total handing weight: 50 kg
Locking force 2300 N (Size 20), 4500 N (Size 41) (※2)
Repeat accuracy ±0.015 mm
Max. permissible XY-axis offset ±1 mm, ±2 mm
Max. permissible angular offset ±2˚
Operating pressure 0.45~0.7 MPa
Ambient temperature +5 ~ +60°C
Proximity sensor RJY
Weight Base plate(R): 0.47 kg (Size 20), 1.3 kg (Size 41); Tool plate(T): 0.37 kg (Size 20), 0.87 kg (Size 41)
Remark ※1. Tool and workpiece please refer to Applications.; ※2. Under locking condition (operating pressure 0.45 MPa).; ※3. Spring, tapered locating stud, and locating pin are consumables.Please consider to replace when performing below expectations.
Series Mindman MCTC
