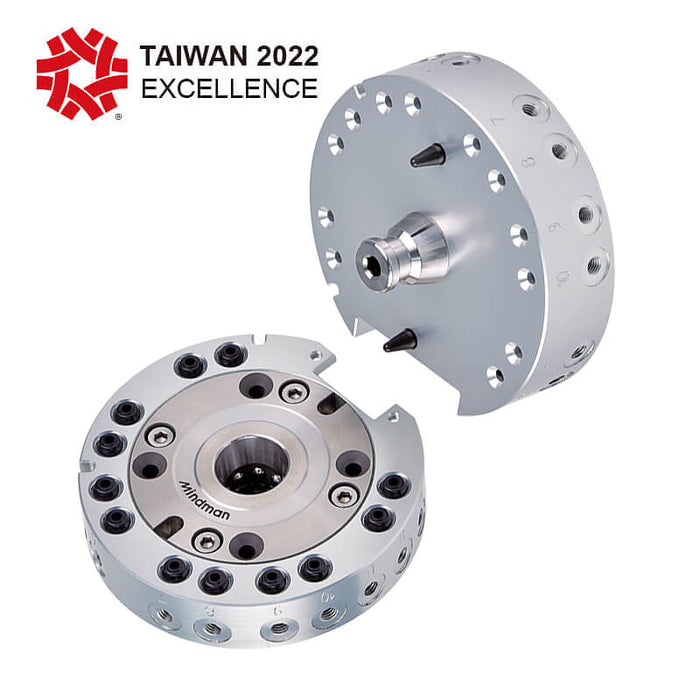

Mindman MCTC series

Mindman Accessory Kits for MCTC-20 Tool Changer

SKU AK-A50
by Mindman
$75.79 - $75.79
$75.79
$75.79 - $75.79
$75.79
Availability:
In stock
Availability:
In stock

Accessory kits for Mindman MCTC-20 base plates (standard or SIP sensor type).

Select the options below; the full Mindman ordering code is shown as the SKU (AK-[A50/A80] / AK-SIP-[A50/A80]).

Price is the Mindman list price.

Specifications

Size 20, 41
Recommended; handing weight (Size 20) Tool: 3.5 kg [ with tool plate (T) ] (※1); Workpiece: 21.5 kg; Total handing weight: 25 kg
Recommended; handing weight (Size 41) Tool: 18 kg [ with tool plate (T) ] (※1); Workpiece: 32 kg; Total handing weight: 50 kg
Locking force 2300 N (Size 20), 4500 N (Size 41) (※2)
Repeat accuracy ±0.015 mm
Max. permissible XY-axis offset ±1 mm, ±2 mm
Max. permissible angular offset ±2˚
Operating pressure 0.45~0.7 MPa
Ambient temperature +5 ~ +60°C
Proximity sensor RJY
Weight Base plate(R): 0.47 kg (Size 20), 1.3 kg (Size 41); Tool plate(T): 0.37 kg (Size 20), 0.87 kg (Size 41)
Remark ※1. Tool and workpiece please refer to Applications.; ※2. Under locking condition (operating pressure 0.45 MPa).; ※3. Spring, tapered locating stud, and locating pin are consumables.Please consider to replace when performing below expectations.
Series Mindman MCTC
